P1-81324

OTTP1_81324
Heilind Number:OTTP1-81324
Manufacturer:OTTO Controls
Manufacturer Number:P1-81324
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

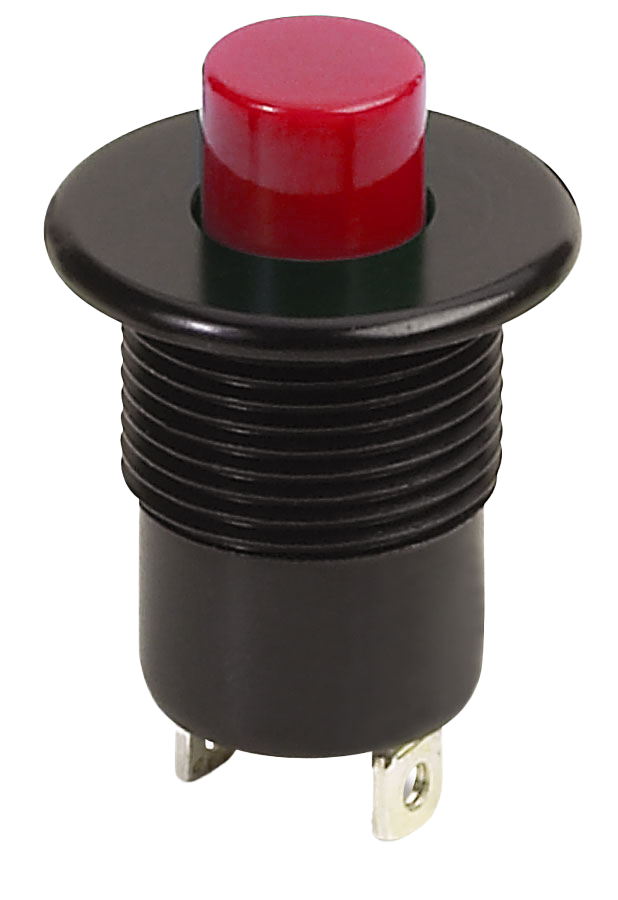

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-81324
Series:P1
Cap Color:Yellow
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:ON-OFF
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NC 3 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-81324

Detailed Description

The P1-81324 Push Button Switch from the P1 series is a high-performance electronic component designed for precise and reliable operation. Featuring a yellow flat button actuator and a durable aluminum housing with a black finish, this switch is panel-mounted for easy installation. With an IP rating of Symbol 2, it offers protection against dust and water ingress. The switch has a non-illuminated design and a long actuator length of .25 inches. Its SPST-NC 3 terminal contact configuration, with contact plating in silver and contact material in brass, ensures efficient conductivity. Rated for 10A current at 115VAC and 28VDC, it is suitable for a wide range of applications. The switch has a high durability rating of 50,000 cycles and can operate in temperatures ranging from -55°C to 85°C, making it ideal for use in challenging environments. Trusted for its quality and performance, this precision snap-action push button switch is a reliable choice for various industrial and commercial settings.
