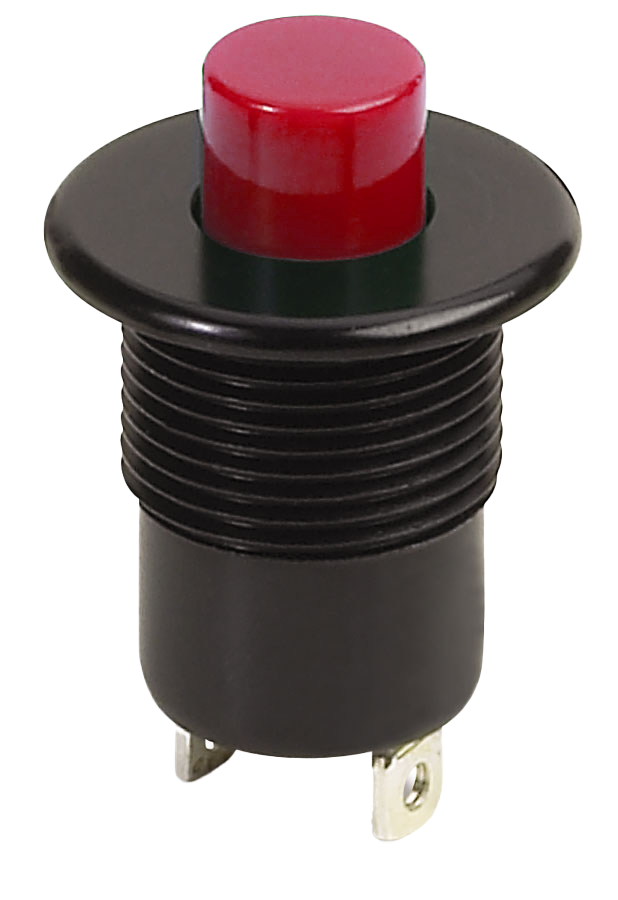

P1-82124

OTTP1_82124
Heilind Number:OTTP1-82124
Manufacturer:OTTO Controls
Manufacturer Number:P1-82124
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-82124
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:Yellow
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP1-82124

Detailed Description

Introducing the P1-82124 Push Button Switch from our P1 series, a high-quality component designed for precision performance. Featuring a durable yellow button with a flat round actuator, this switch is perfect for panel mounting applications. With an IP Rating of 2 and sealed housing construction, it ensures reliable operation even in harsh environments. The Off-(On) switch function, along with SPST-NO contact configuration, offers versatility for various circuit setups. Rated for 10A at 115VAC and 28VDC, it guarantees efficient power control. Crafted with brass contacts and silver plating, it guarantees long-lasting durability with a rating of 25,000 cycles. Suitable for a wide range of industries, the P1-82124 is the ideal choice for demanding applications where precision and reliability are paramount.
