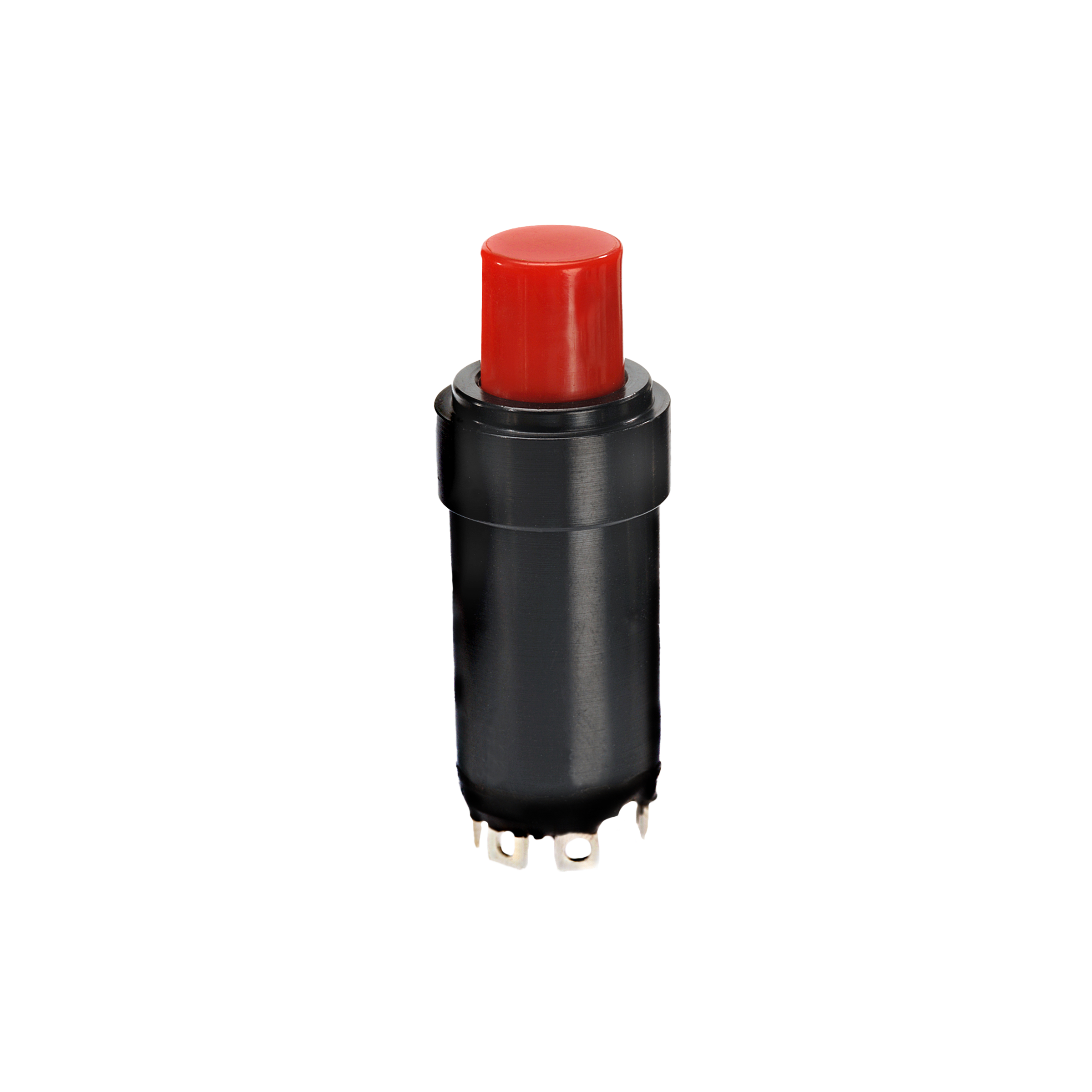

P2-113328

OTTP2_113328
Heilind Number:OTTP2-113328
Manufacturer:OTTO Controls
Manufacturer Number:P2-113328
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

3-Position Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P2-113328
Series:P2
Cap Color:Gray
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.47 in
Contact Plating:Silver
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):125 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:2 SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP2-113328

Detailed Description

The P2 Series Push Button Switch ( P2-113328) is a reliable and durable component designed for panel mount applications. Featuring a sleek black case with a gray button, this switch boasts an IP Rating of 3 for protection against dust and splashes. The non-illuminated flat button, made of thermoplastic, offers a comfortable actuation experience, while the silver-plated brass contacts ensure efficient conductivity. With a contact configuration of 2 SPDT, it provides versatility in circuit control. Operating at a maximum temperature of 85°C and a minimum of -55°C, this switch is suitable for a wide range of environments. Ideal for industrial and commercial use, it offers a long lifespan of 25,000 cycles. Whether used in machinery, control panels, or automotive applications, the P2 Series Push Button Switch guarantees reliable performance.
