| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P2-311112 |
| Series: | P2 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | Symbol 3 |
| Illumination: | Not Illuminated |
| Contact Configuration: | 2 SPST-NO |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .46 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 125 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP2-311112 |
P2-311112
Specifications
Detailed Description

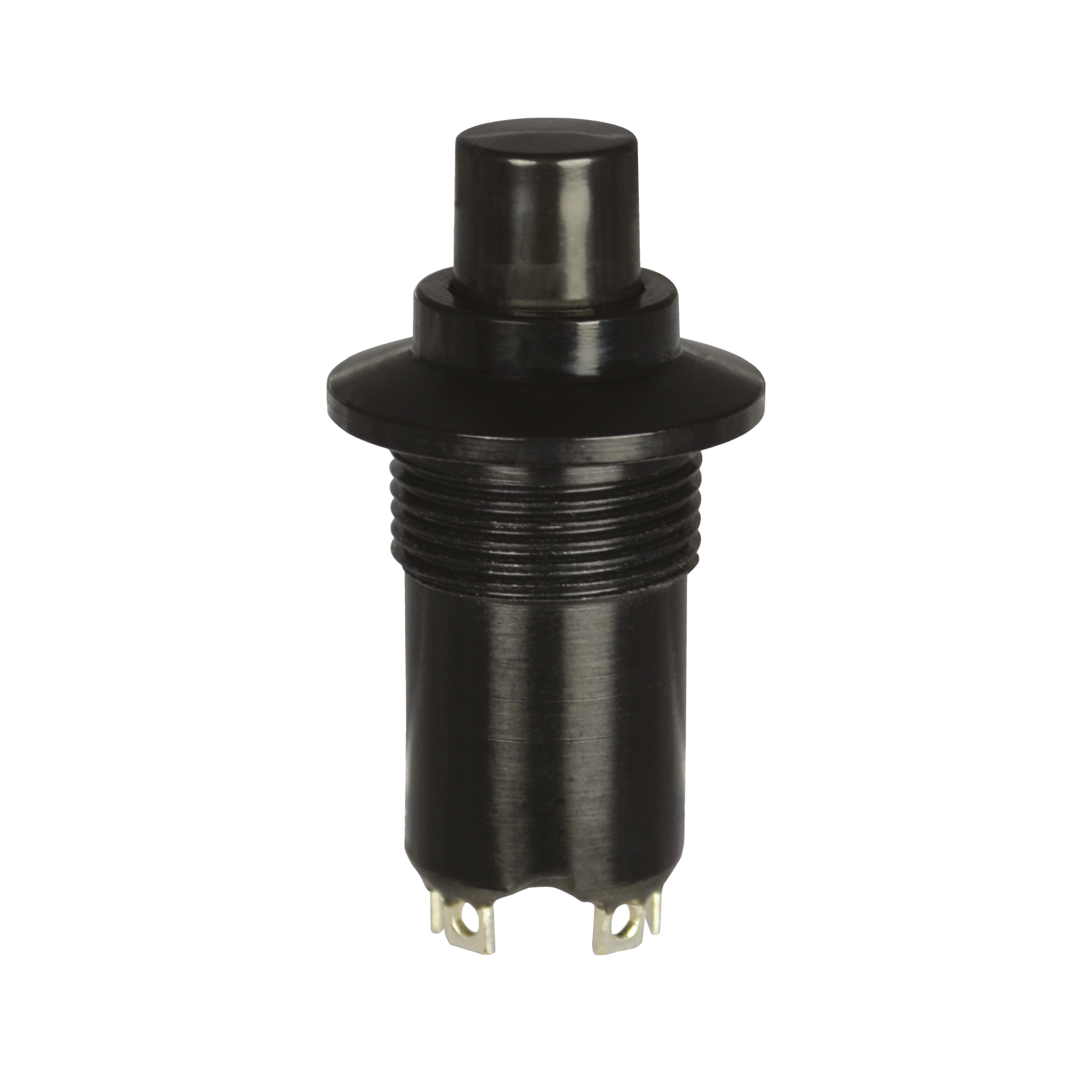

Introducing the P2 Series Panel Mount Push Button Switch, SKU P2-311112. Designed for durability with a rating of 25,000 cycles, this switch ensures long-lasting performance. The black aluminum housing and thermoplastic actuator with a flat round button provide a sleek and reliable interface. Featuring a 5A current rating and 125VAC/28VDC voltage ratings, it is suitable for various applications. With a contact configuration of 2 SPST-NO and brass contacts plated with silver, it guarantees efficient conductivity. The Off-(On) switch function offers easy operation, while the IP3 rating and sealed construction provide protection against environmental elements. Ideal for use in demanding environments, this push button switch is a dependable choice for control panels and electronic equipment.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
