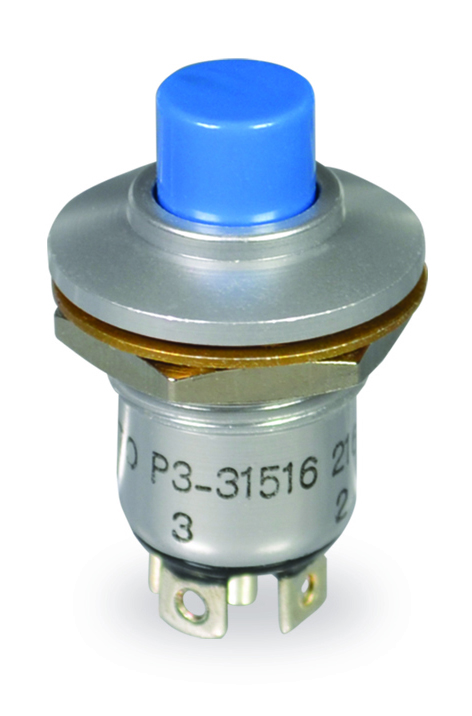

P3-32214W

OTTP3_32214W
Heilind Number:OTTP3-32214W
Manufacturer:OTTO Controls
Manufacturer Number:P3-32214W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Sealed Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-32214W
Series:P3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPST-NC
Actuator Type:Button (Flat)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:Yellow
Actuator Length:.25 in
Switch Function:ON-OFF
Type:Sealed
Durability Rating (Cycles):100,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP3-32214W

Detailed Description

The P3 Series Sealed Momentary Action Push Button Switch, SKU P3-32214W, is a high-performance component designed for demanding environments. Featuring a durable thermoplastic actuator with a flat round button design, this switch ensures reliable operation with a 100,000 cycle durability rating. The yellow button and silver housing not only provide a stylish appearance but also signal the switch's IP6K8S sealing, making it resistant to water and dust ingress. With a contact configuration of SPST-NC, a current rating of 10A, and voltage ratings of 115VAC and 28VDC, this switch is suitable for a wide range of applications. Whether panel-mounted in industrial machinery or control panels, its brass contact material and silver plating guarantee efficient conductivity. Operating smoothly in temperatures ranging from -55°C to 85°C, this switch is a dependable choice for critical systems.
