P3-61112

OTTP3_61112
Heilind Number:OTTP3-61112
Manufacturer:OTTO Controls
Manufacturer Number:P3-61112
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

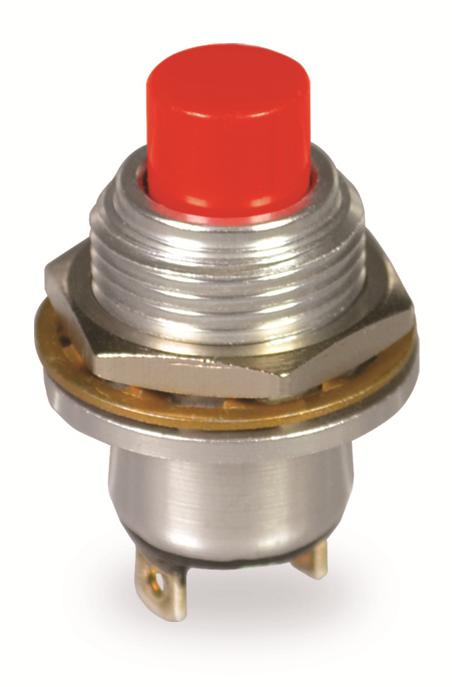

Sealed Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-61112
Series:P3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat Push/Pull)
Case Color:Silver
Actuator Material:Nylon
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.38 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):100,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP3-61112

Detailed Description

Introducing the P3 Series Sealed Momentary Action Pushbutton Switch, P3-61112. Designed for reliability in demanding environments, this switch features a durable construction with an aluminum housing and nylon actuator. With a black cap and silver case, it offers a sleek appearance. The switch is panel mountable, perfect for secure installation. Operating at a current rating of 10A and voltage ratings of 115VAC and 28VDC, it ensures efficient performance. The SPST-NO contact configuration with silver contact plating guarantees high conductivity. Meeting IP6K4S standards, it is resistant to dust and water ingress. Rated for 100,000 cycles, this switch provides long-lasting use. Suitable for a temperature range of -55°C to 85°C, it is versatile in various applications. Perfect for industrial, automotive, or aerospace use, this pushbutton switch is a reliable choice for your electronic control needs.
