P3-61116

OTTP3_61116
Heilind Number:OTTP3-61116
Manufacturer:OTTO Controls
Manufacturer Number:P3-61116
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

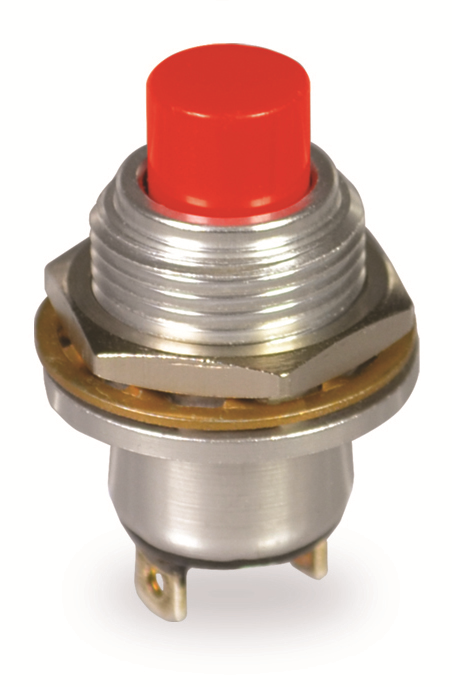

Sealed Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-61116
Series:P3
Cap Color:Blue
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat Push/Pull)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.38 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Nylon
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP3-61116

Detailed Description

Introducing the P3-61116, a high-performance Push Button Switch designed for reliability in demanding environments. Part of the P3 series, this switch features a durable aluminum housing with a sleek Silver case and a Blue flat push/pull button actuator. With an IP6K4S rating, it offers excellent protection against dust and water ingress. The SPST-NO contact configuration, along with a current rating of 10 A at 115 VAC and 28 VDC, ensures efficient power control. Operating smoothly from -55°C to 85°C, and with a durability rating of 100,000 cycles, it guarantees long-lasting performance. Perfect for panel mounting, this sealed momentary action switch, terminated by solder, is ideal for industrial and commercial applications where reliability is paramount. Upgrade to the P3-61116 for seamless control in every operation.
