P3-61238

OTTP3_61238
Heilind Number:OTTP3-61238
Manufacturer:OTTO Controls
Manufacturer Number:P3-61238
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

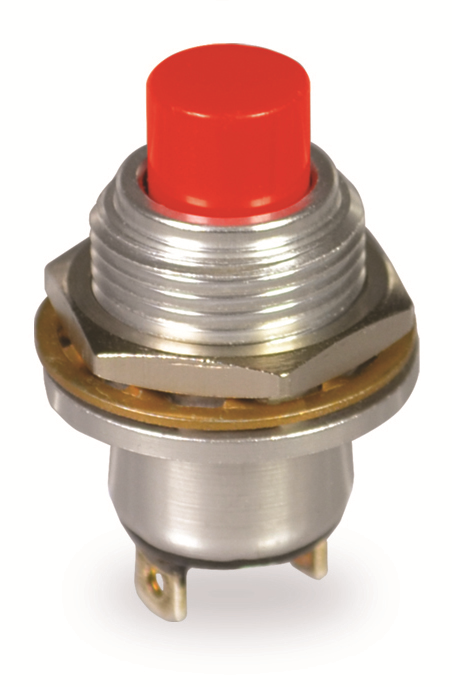

Sealed Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-61238
Series:P3
Cap Color:Gray
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat Push/Pull)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.38 in
Contact Plating:Silver
Switch Function:ON-OFF
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Nylon
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NC
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP3-61238

Detailed Description

The P3-61238 Pushbutton Switch, part of the P3 series, is a reliable and durable component designed for demanding environments. Featuring a Gray cap and Silver case, it boasts an IP6K4S rating for protection against water and dust ingress. The Button (Flat Push/Pull) actuator, made of Nylon, offers a comfortable and responsive interface. With a current rating of 10 A and contact plating in Silver, this switch ensures efficient conductivity. Its On-(Off) switch function and SPST-NC contact configuration make it suitable for various applications. Operating at temperatures ranging from -55 °C to 85 °C, and with a voltage rating of 115 VAC/28 VDC, it guarantees performance in diverse conditions. Whether used in industrial machinery, automotive systems, or aerospace equipment, the P3-61238 is a dependable solution for control and signaling needs.
