P3-63112

OTTP3_63112
Heilind Number:OTTP3-63112
Manufacturer:OTTO Controls
Manufacturer Number:P3-63112
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

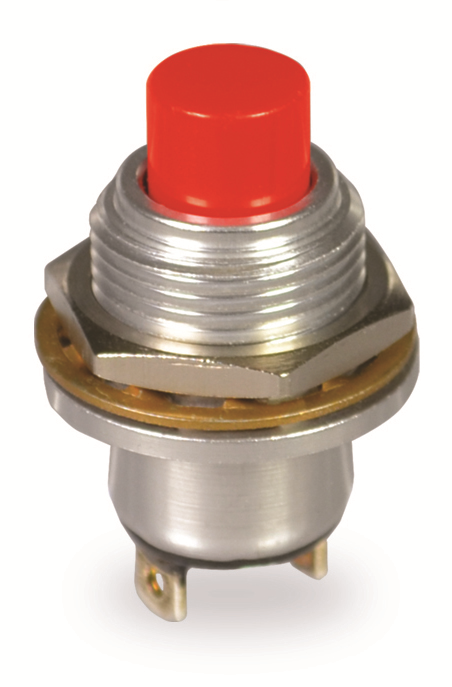

Sealed Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-63112
Series:P3
Cap Color:Black
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat Push/Pull)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.38 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Nylon
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP3-63112

Detailed Description

Introducing our Sealed Momentary Action Pushbutton Switch with SKU P3-63112 from the P3 series. Featuring a sleek design with a Black cap and Silver case, this switch is perfect for panel mounting. With an IP6K4S rating, it ensures durability in harsh environments. The Button (Flat Push/Pull) actuator with a Round shape offers easy operation. Gold-plated Brass contacts guarantee reliable performance, while the Aluminum housing and Nylon actuator provide sturdy construction. Operating at 115 VAC and 28 VDC, with a current rating of 10A, this switch is suitable for various applications. With a SPST-NO contact configuration and Off-(On) switch function, it offers precise control. Rated for 100,000 cycles, it ensures long-lasting use. From industrial machinery to automotive systems, this sealed pushbutton switch is a dependable choice.
