P3-71624

OTTP3_71624
Heilind Number:OTTP3-71624
Manufacturer:OTTO Controls
Manufacturer Number:P3-71624
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

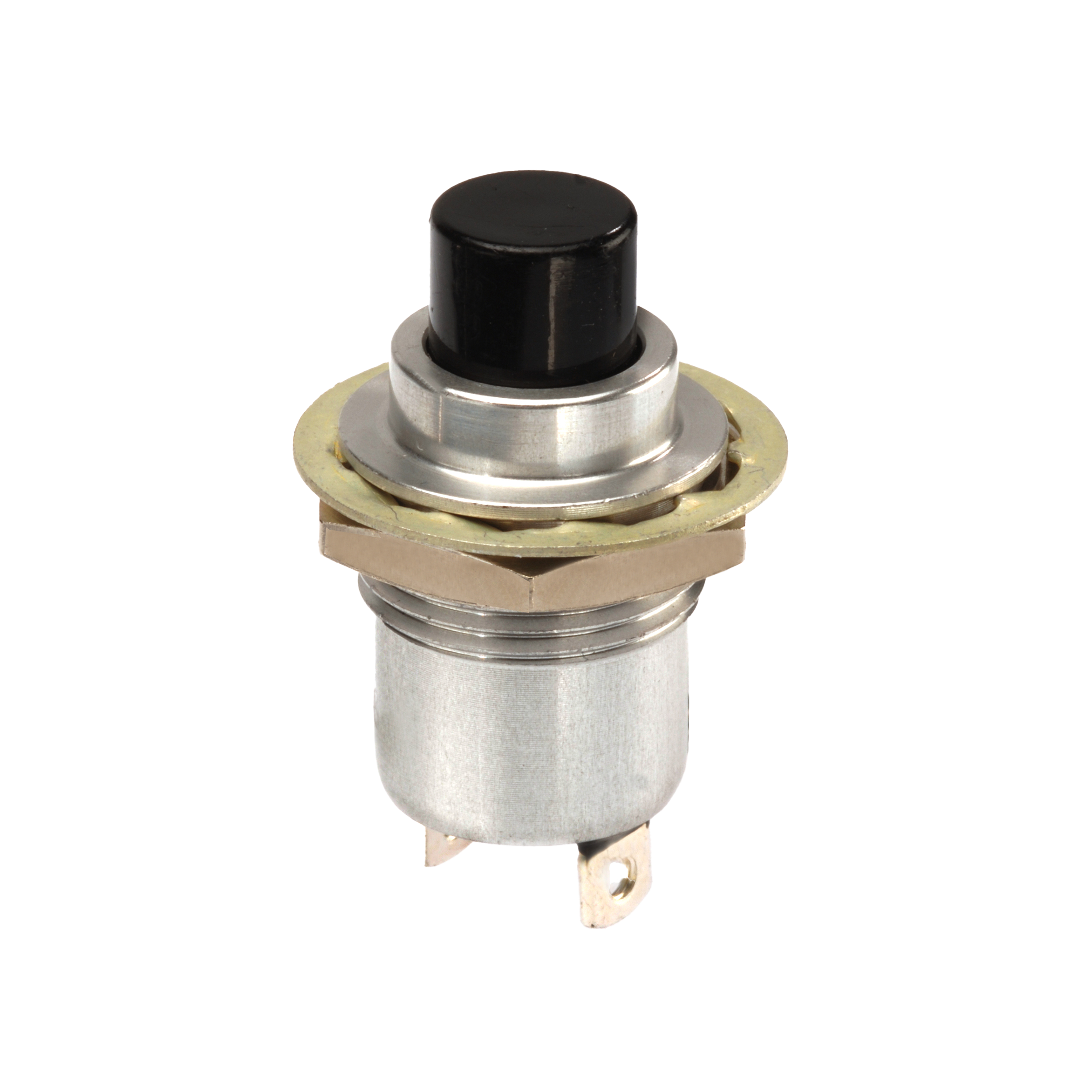

Sealed Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-71624
Series:P3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Silver
Actuator Material:Nylon
Termination Type:Solder
Actuator Shape:Round
Cap Color:Yellow
Actuator Length:.25 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):100,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP3-71624

Detailed Description

Introducing the P3-71624, a durable and reliable Sealed Momentary Action Pushbutton from our P3 series. Designed for industrial applications, this switch features a yellow flat round button actuator with a silver aluminum casing, ensuring longevity and performance in harsh environments. With an IP6K4S rating, it offers protection against dust and water ingress. The SPDT contact configuration and 10A current rating make it suitable for various power control tasks, while its panel mount setup and solder termination type streamline installation. Operating flawlessly in temperatures ranging from -55°C to 85°C, it guarantees consistent functionality. Whether used in automotive, aerospace, or machinery, this pushbutton switch is a dependable choice for critical operations.
