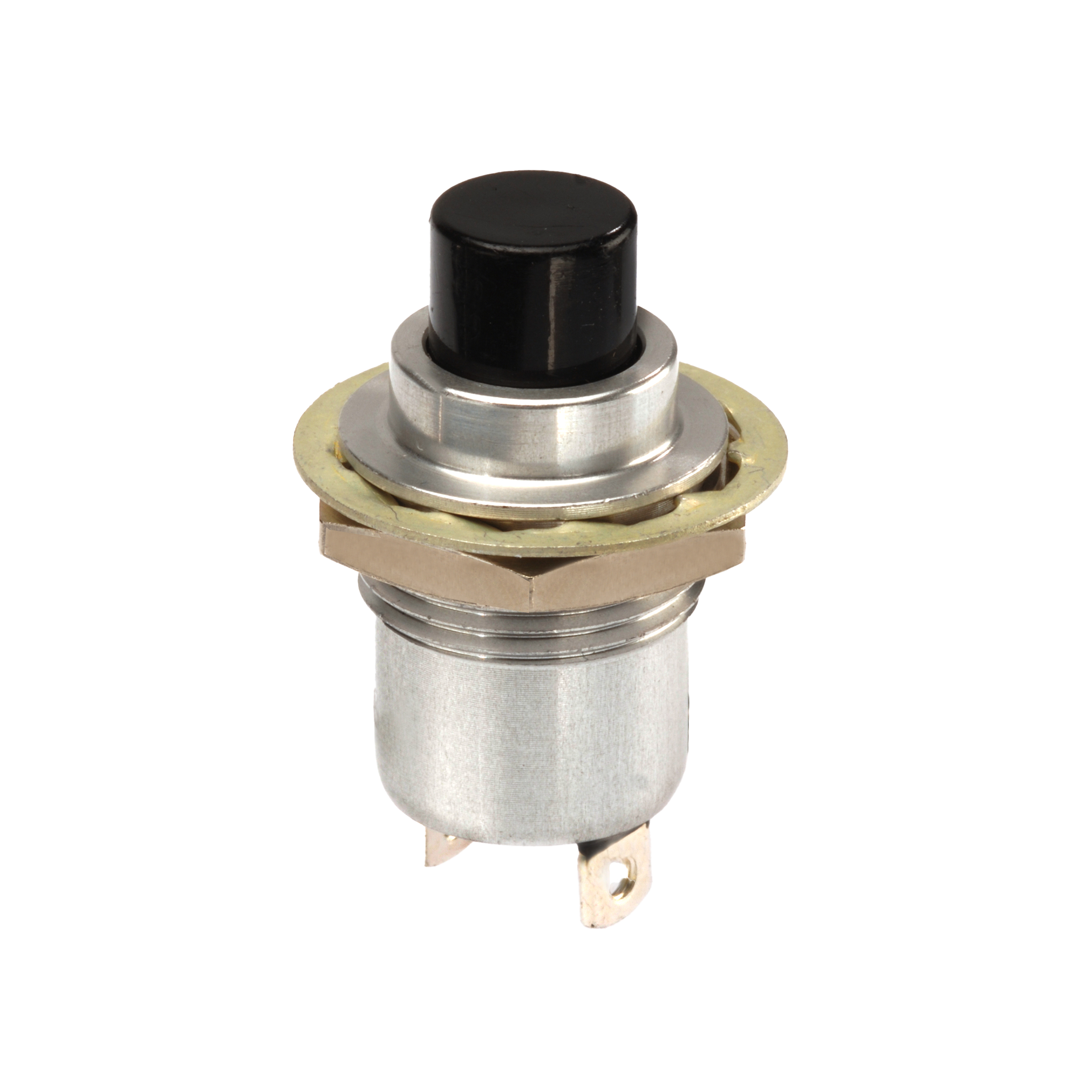

P3-72111

OTTP3_72111
Heilind Number:OTTP3-72111
Manufacturer:OTTO Controls
Manufacturer Number:P3-72111
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Sealed Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-72111
Series:P3
Cap Color:Red
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Nylon
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP3-72111

Detailed Description

Introducing the P3-72111, a rugged and reliable sealed momentary action pushbutton switch perfect for demanding environments. With a durable aluminum housing and IP6K4S rating, it ensures protection against dust and water ingress, making it ideal for industrial applications. The red button, made of high-grade nylon, features a flat round design for easy actuation. Operating at 115VAC or 28VDC with a 10A current rating, this switch guarantees efficient performance. The SPST-NO contact configuration, along with silver-plated brass contacts, ensures a reliable electrical connection. Designed for panel mounting with screw termination, it offers easy installation. With a 100,000 cycle durability rating and a wide operating temperature range from -55°C to 85°C, this pushbutton switch is built to last. Perfect for control panels, machinery, and automotive applications, the P3-72111 is a true powerhouse in the world of switches.
