P3-72429

OTTP3_72429
Heilind Number:OTTP3-72429
Manufacturer:OTTO Controls
Manufacturer Number:P3-72429
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

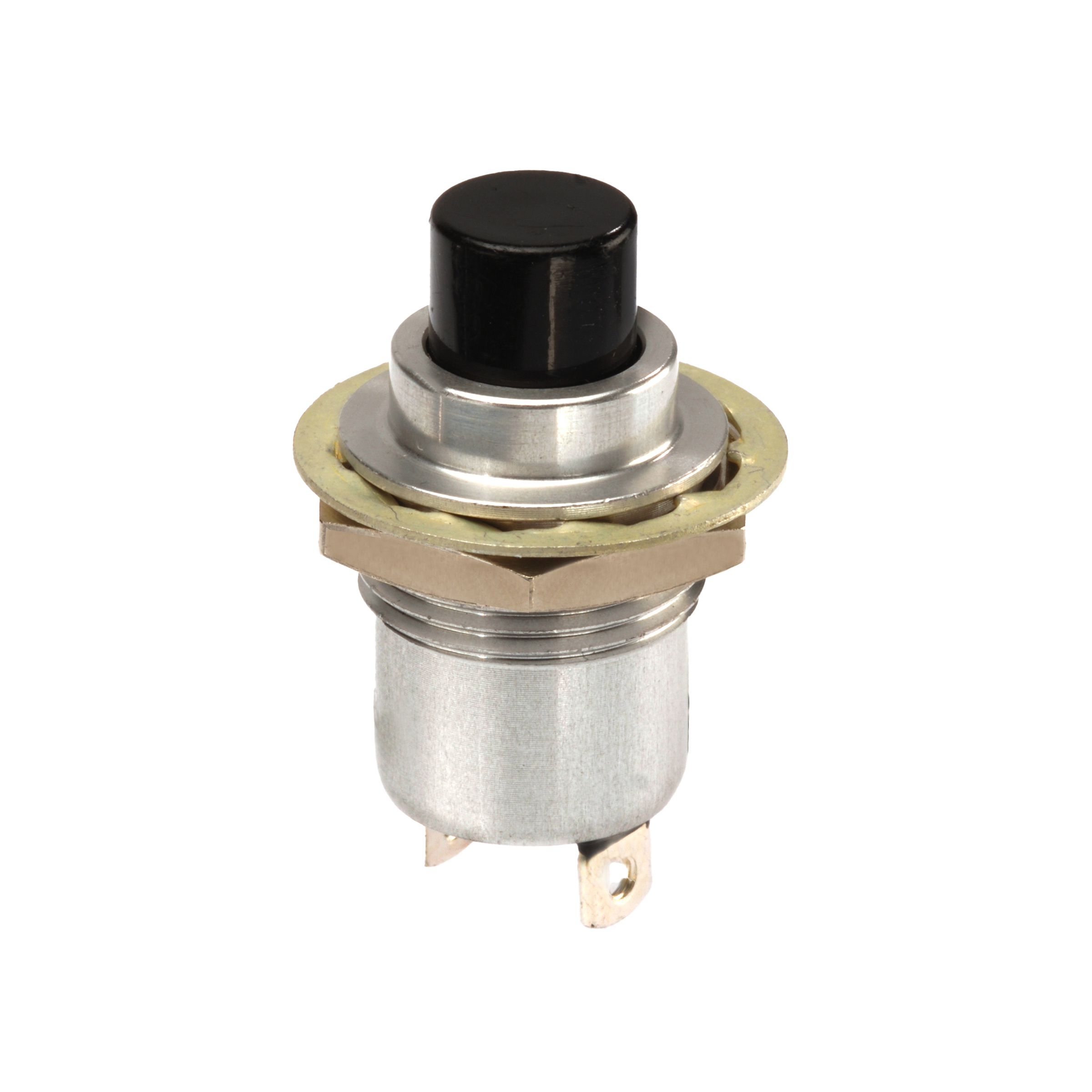

Sealed Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-72429
Series:P3
Cap Color:White
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Nylon
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO 3 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP3-72429

Detailed Description

The P3-72429 Pushbutton Switch from the P3 series is a reliable and durable component, perfect for various applications. Featuring a White cap and Silver case, it offers a sleek design that complements any panel. With an IP6K4S rating, it ensures protection against dust and water ingress. The Button (Flat) actuator, made of Nylon, provides comfortable operation. This switch is Off-(On) type, with a current rating of 10A, suitable for high-power systems. Its SPST-NO 3 Terminal configuration guarantees efficient performance. The contact material is Brass with Silver plating, ensuring longevity. Operating at temperatures ranging from -55°C to 85°C, it's versatile for use in different environments. Easy to install with Screw termination, this Sealed Momentary Action Pushbutton is a must-have in the Push Button Switches category. Its high durability of 100,000 cycles and voltage ratings of 115 VAC and 28 VDC make it a reliable choice for industrial and commercial settings. Upgrade your control systems with the P372429 for seamless and efficient operation.
