P3-81222

OTTP3_81222
Heilind Number:OTTP3-81222
Manufacturer:OTTO Controls
Manufacturer Number:P3-81222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

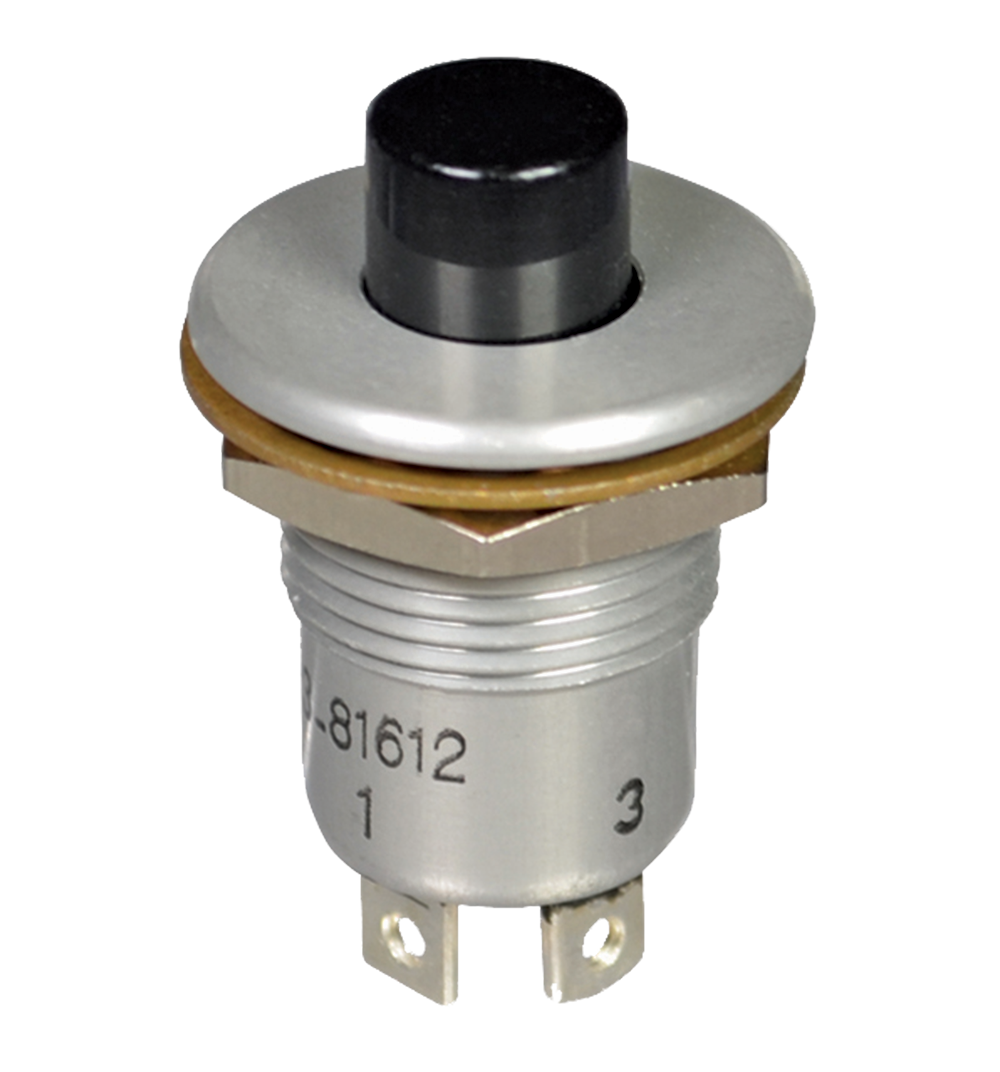

Sealed Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-81222
Series:P3
Cap Color:Black
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:ON-OFF
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Nylon
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NC
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP3-81222

Detailed Description

Introducing the P3-81222, a durable and reliable Sealed Momentary Action Pushbutton switch designed for demanding environments. With a sleek black cap and silver case, this panel mount switch features a round, flat button actuator made of nylon for comfortable use. Boasting an IP6K4S rating, it ensures protection against dust and water ingress. The SPST-NC contact configuration, along with a 10A current rating and 115VAC/28VDC voltage ratings, guarantees efficient power control. Crafted with high-quality materials such as brass contacts and aluminum housing, it offers a lifespan of 100,000 cycles. Ideal for applications requiring non-illuminated operation, this switch is suitable for use in a wide range of industries. From industrial machinery to automotive systems, trust the P3 series for reliable performance in harsh conditions.
