P3-82116

OTTP3_82116
Heilind Number:OTTP3-82116
Manufacturer:OTTO Controls
Manufacturer Number:P3-82116
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

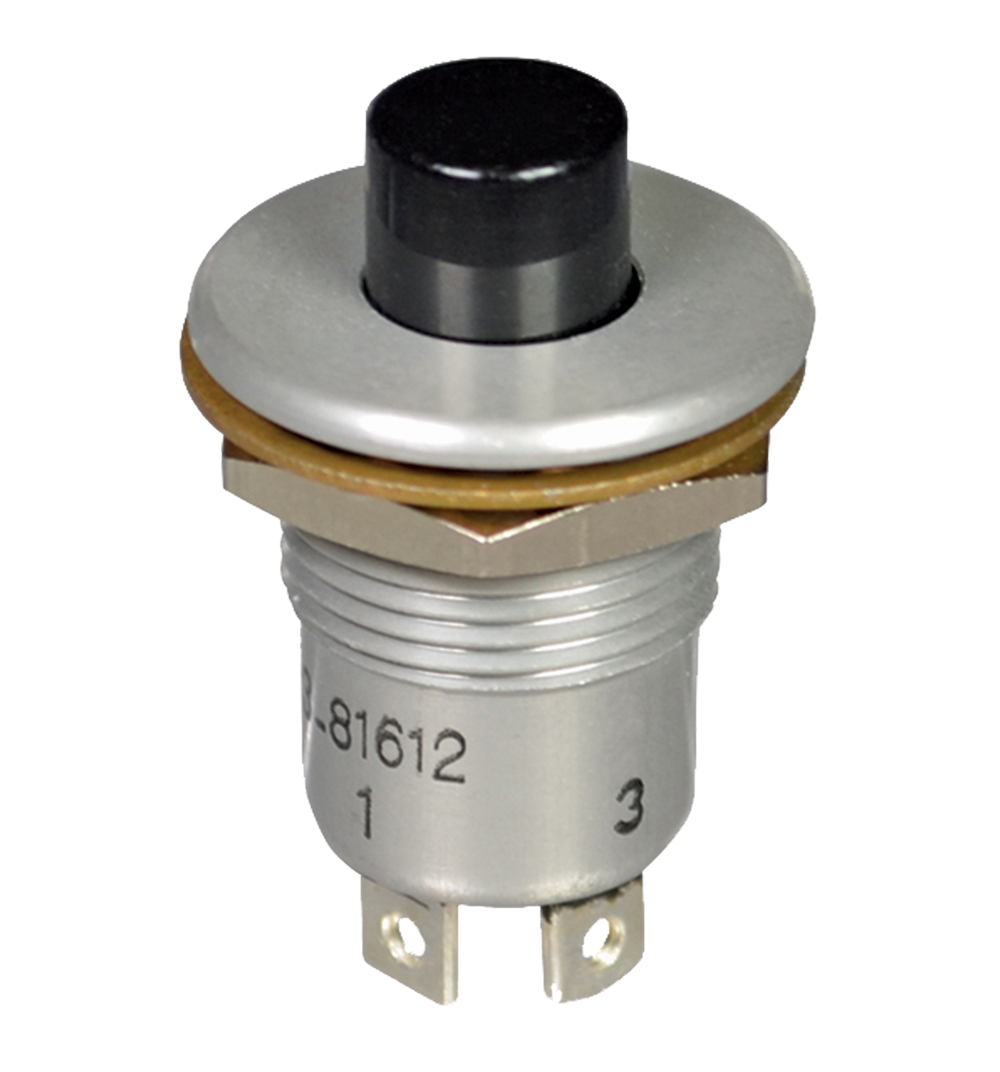

Sealed Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-82116
Series:P3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Silver
Actuator Material:Nylon
Termination Type:Screw
Actuator Shape:Round
Cap Color:Blue
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):100,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP3-82116

Detailed Description

The Sealed Momentary Action Pushbutton Switch, part of the P3 series with SKU P3-82116, is a reliable and durable component designed for high-performance applications. Featuring a flat button actuator with a round shape, this switch has a blue cap color and a silver case, making it visually appealing. With an IP6K4S rating, it offers excellent protection against dust and water ingress. The switch has a contact configuration of SPST-NO and a contact material of brass with silver plating, ensuring efficient and long-lasting operation. Suitable for panel mounting, it has a current rating of 10A and voltage ratings of 115VAC and 28VDC. Operating temperature ranges from -55°C to 85°C, making it ideal for use in various environments. The aluminum housing and nylon actuator material guarantee robustness, while the screw termination type facilitates easy installation. With a durability rating of 100,000 cycles, this pushbutton switch is a dependable choice for industrial and commercial settings.
