P3-82122

OTTP3_82122
Heilind Number:OTTP3-82122
Manufacturer:OTTO Controls
Manufacturer Number:P3-82122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

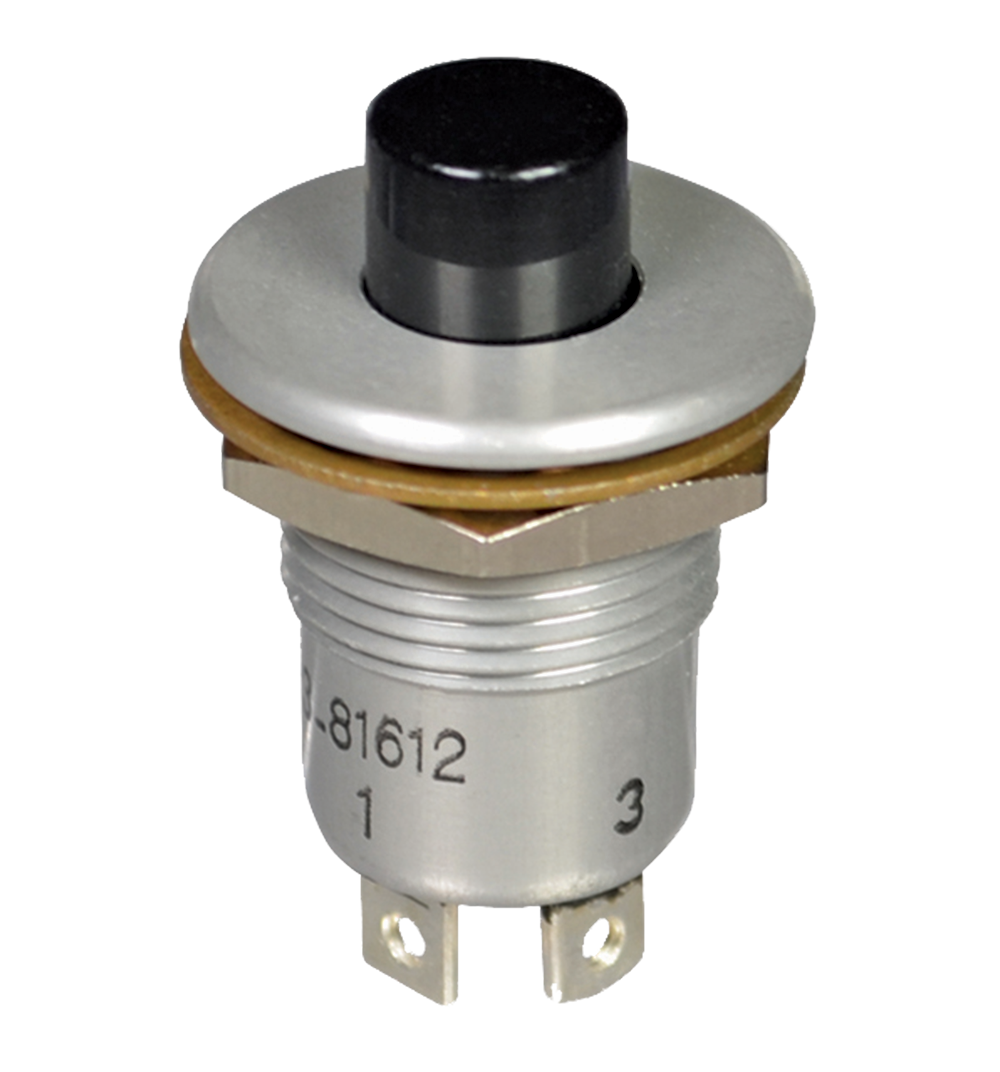

Sealed Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-82122
Series:P3
Cap Color:Black
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Nylon
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP3-82122

Detailed Description

The P3 Series Sealed Momentary Action Pushbutton Switch, SKU P3-82122, is a durable and reliable component for various applications. Featuring a sleek silver case with a black button, it offers a sophisticated design for panel mounting. With an IP6K4S rating, this switch is highly resistant to dust and water ingress, making it suitable for harsh environments. The SPST-NO contact configuration, with silver-plated brass contacts, ensures efficient conductivity. Operating at temperatures ranging from -55°C to 85°C, and with a voltage rating of 115VAC and 28VDC, it guarantees performance in diverse conditions. The button, made of nylon, provides a comfortable actuation experience, while the aluminum housing offers robust protection. Ideal for industries requiring high-quality switches, the P3 Series Pushbutton is a dependable choice for demanding applications.
