P3-82622

OTTP3_82622
Heilind Number:OTTP3-82622
Manufacturer:OTTO Controls
Manufacturer Number:P3-82622
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

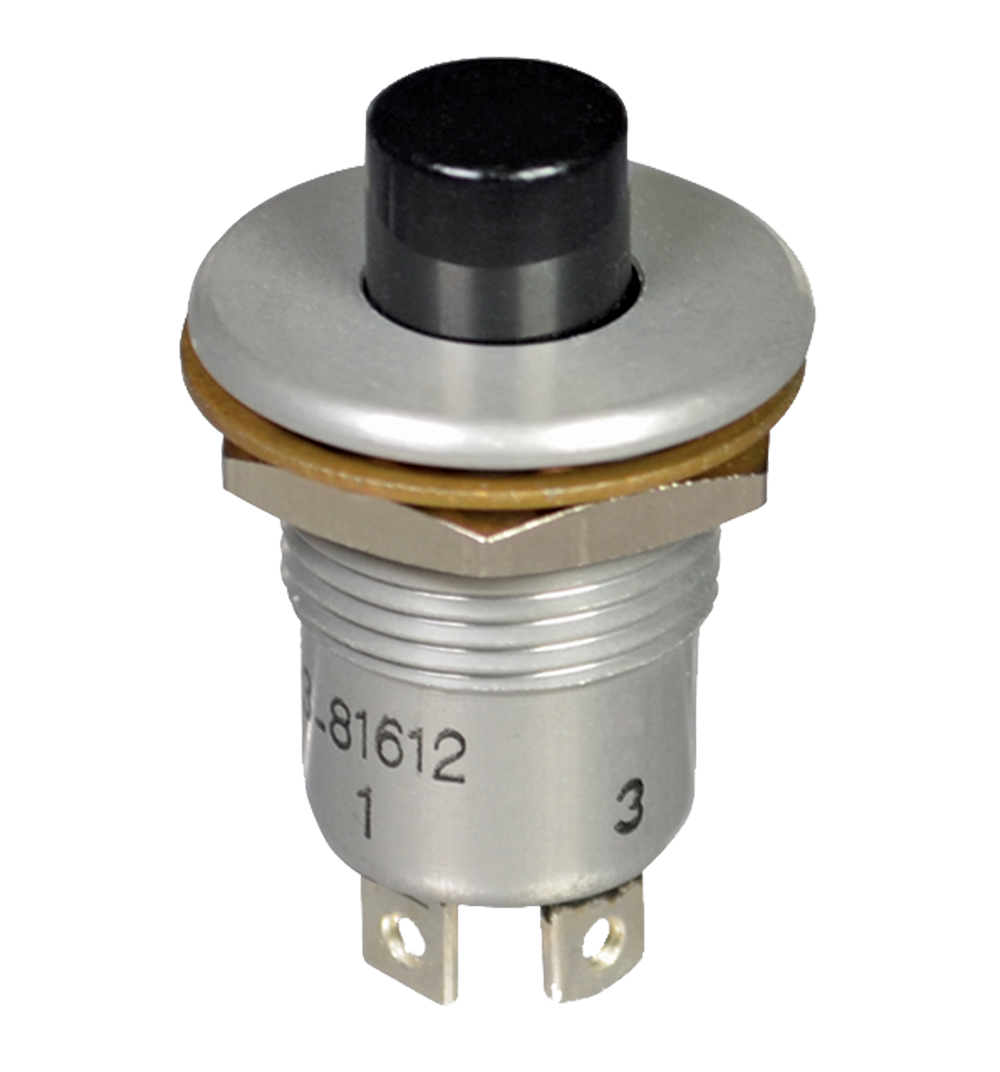

Sealed Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-82622
Series:P3
Cap Color:Black
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Nylon
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP3-82622

Detailed Description

Introducing our P3 Series Sealed Momentary Action Pushbutton Switch, SKU P3-82622. Designed for durability with a life expectancy of 100,000 cycles, this switch is perfect for high-demand environments. Featuring a sleek black cap and a silver aluminum case, it offers both style and functionality. The IP6K4S rating ensures protection against dust and water ingress, making it suitable for various applications. With a 10A current rating and SPDT contact configuration, it guarantees reliable performance. The flat round button actuator, made of nylon, provides a comfortable and responsive user experience. Ideal for panel mounting with screw termination, this switch is easy to install. Whether in industrial machinery or consumer electronics, trust the P3 Series for seamless operation in temperatures ranging from -55°C to 85°C. Upgrade your control systems with this high-quality, non-illuminated pushbutton switch.
