P3-D121122

OTTP3_D121122
Heilind Number:OTTP3-D121122
Manufacturer:OTTO Controls
Manufacturer Number:P3-D121122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

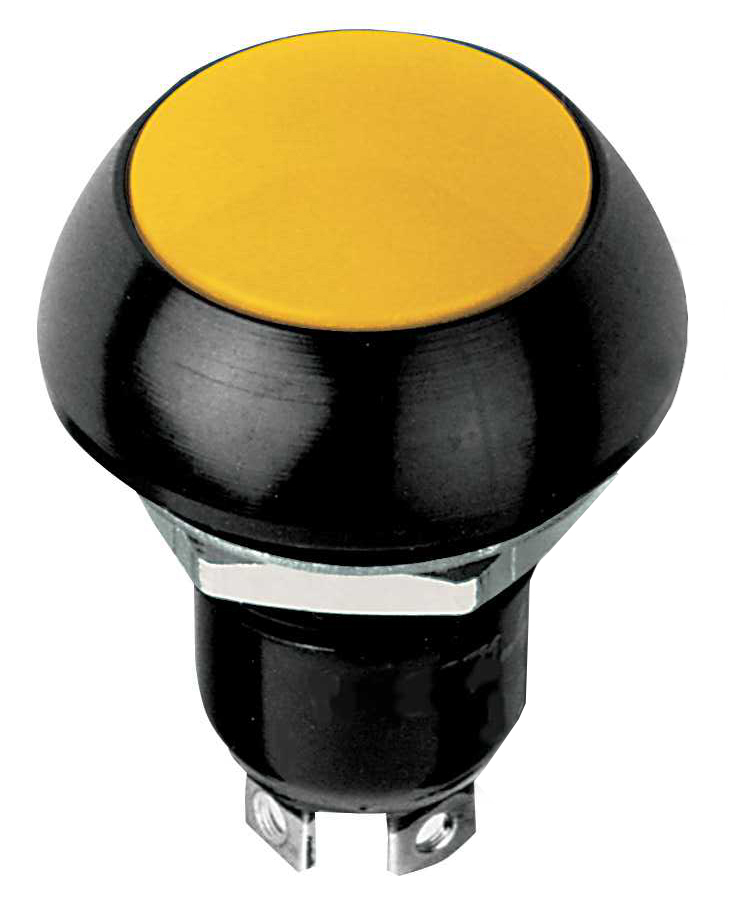

Dome Style, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-D121122
Series:P3-D
Cap Color:Black
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flush Dome)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.48 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Thermoplastic
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP3-D121122

Detailed Description

Introducing the P3-D Series Black Dome Style Pushbutton Switch, SKU P3-D121122. Engineered for durability with a lifespan of 100,000 cycles, this sealed switch ensures reliable performance in demanding environments. Featuring a flush dome button actuator made of thermoplastic, it offers a comfortable tactile response. The SPST-NO contact configuration with silver-plated brass contacts guarantees efficient conductivity. With a current rating of 10A and voltage ratings of 115VAC and 28VDC, this switch is suitable for a wide range of applications. Its IP6K4S rating and aluminum housing provide excellent protection against dust and water ingress. Ideal for panel mounting, the P3-D121122 is perfect for industrial and commercial use where a momentary action switch is required. With a temperature range from -55°C to 85°C, it performs reliably in extreme conditions. Upgrade your control systems with the high-performance P3-D121122 Pushbutton Switch.
