P3-D126126

OTTP3_D126126
Heilind Number:OTTP3-D126126
Manufacturer:OTTO Controls
Manufacturer Number:P3-D126126
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

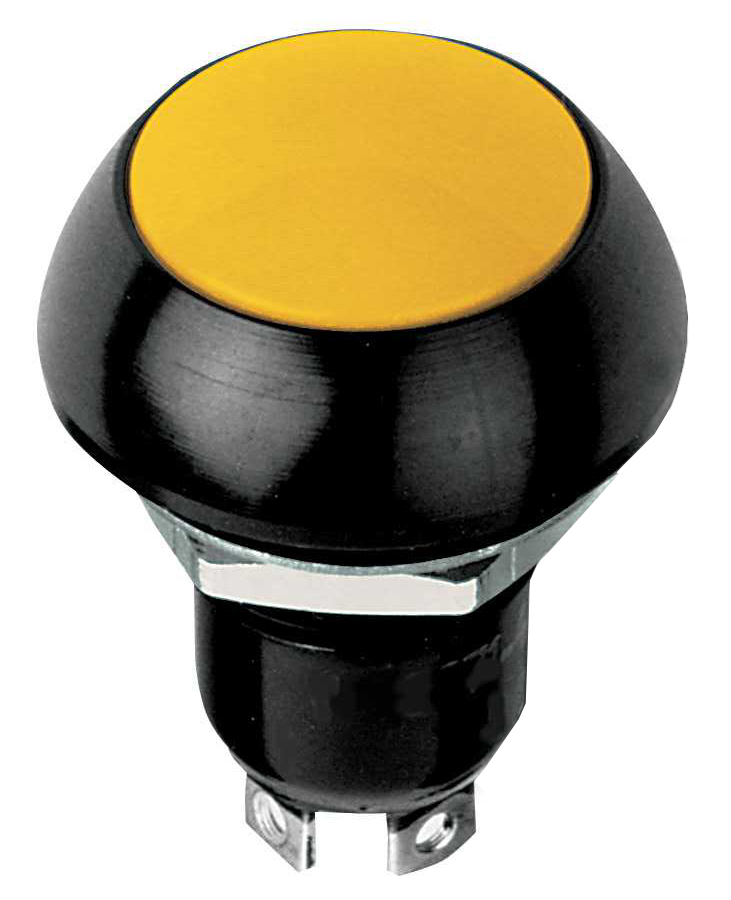

Dome Style, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-D126126
Series:P3-D
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flush Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:Blue
Actuator Length:.48 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):100,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP3-D126126

Detailed Description

Introducing the P3-D126126 Push Button Switch from our P3-D series. This durable and reliable switch features a blue flush dome actuator and a black aluminum housing, making it ideal for industrial applications. With an IP6K4S sealing rating, it offers protection against dust and water ingress, ensuring longevity even in harsh environments. The switch is designed for panel mounting and has a screw termination, facilitating easy installation. Operating at a maximum temperature of 85°C and a minimum of -55°C, it guarantees performance in a wide range of conditions. Rated for 100,000 cycles, this momentary action switch with a SPDT contact configuration and 10A current rating is suitable for various control and signaling tasks. Whether it's for machinery, automotive, or aerospace use, the P3-D126126 is a high-quality, sealed push button switch that delivers precision and reliability.
