P3-D141124

OTTP3_D141124
Heilind Number:OTTP3-D141124
Manufacturer:OTTO Controls
Manufacturer Number:P3-D141124
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

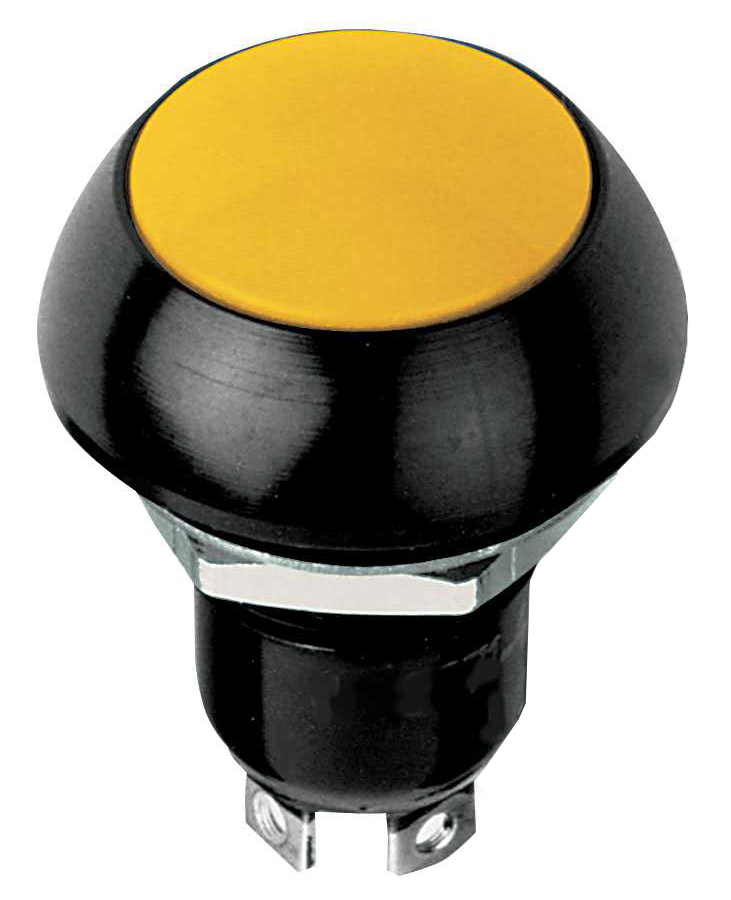

Dome Style, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-D141124
Series:P3-D
Cap Color:Yellow
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flush Dome)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.48 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Thermoplastic
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP3-D141124

Detailed Description

Introducing the Dome Style Sealed Pushbutton Switch from our P3-D series, SKU P3-D141124. This high-performance switch features a Yellow Flush Dome actuator, providing tactile feedback for reliable operation. With an IP6K4S rating and durable aluminum housing, it ensures protection against dust and water ingress, making it ideal for demanding environments. The SPST-NO contact configuration, along with a 10A current rating, guarantees efficient power control. Operating smoothly between -55°C to 85°C, it offers versatility in various applications. Panel mountable with screw termination, installation is convenient. Trust in its 100,000 cycle durability and compliant with RoHS standards, this switch is a dependable choice for industrial and commercial use. Upgrade to the P3-D141124 for premium quality and performance.
