P3-D211129W

OTTP3_D211129W
Heilind Number:OTTP3-D211129W
Manufacturer:OTTO Controls
Manufacturer Number:P3-D211129W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

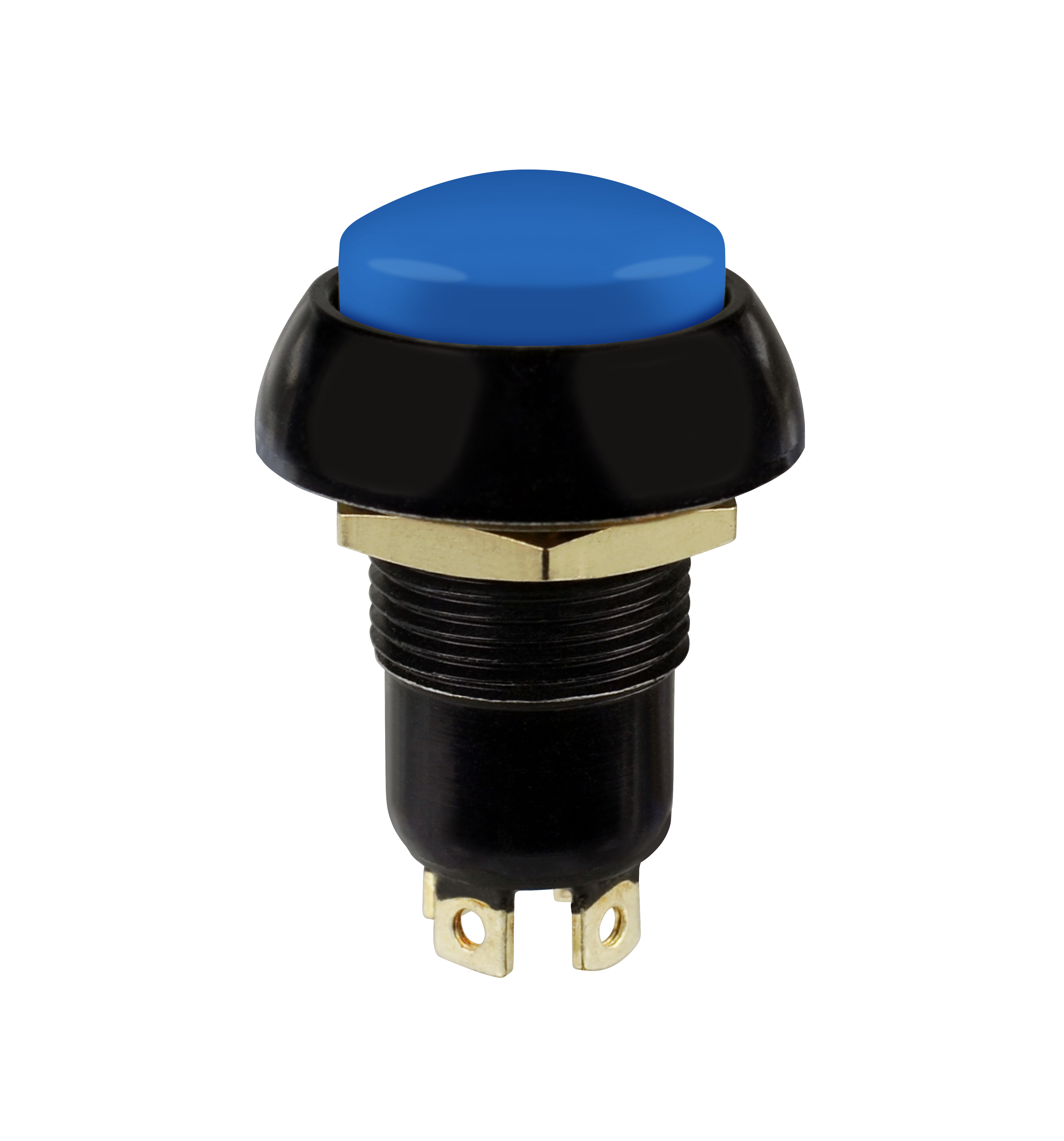

Dome Style, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-D211129W
Series:P3-D
Cap Color:White
IP Rating:IP6K8S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.53 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP3-D211129W

Detailed Description

Featuring a sleek design with a white cap and black casing, the P3-D211129W Push Button Switch from the P3-D series is a reliable choice for various applications. Its durable construction, with an IP6K8S rating for dust and water resistance, ensures longevity even in harsh environments. The momentary action switch, with a 10A current rating and SPST-NO contact configuration, guarantees efficient performance. Designed for panel mounting, it offers easy installation. The raised dome button, made of thermoplastic, provides a comfortable actuation experience. With a voltage rating of 115VAC and 28VDC, this switch is suitable for both AC and DC applications. Ideal for use in industrial, automotive, and marine settings, this sealed push button switch is a versatile and dependable component.
