P3-D231122W

OTTP3_D231122W
Heilind Number:OTTP3-D231122W
Manufacturer:OTTO Controls
Manufacturer Number:P3-D231122W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

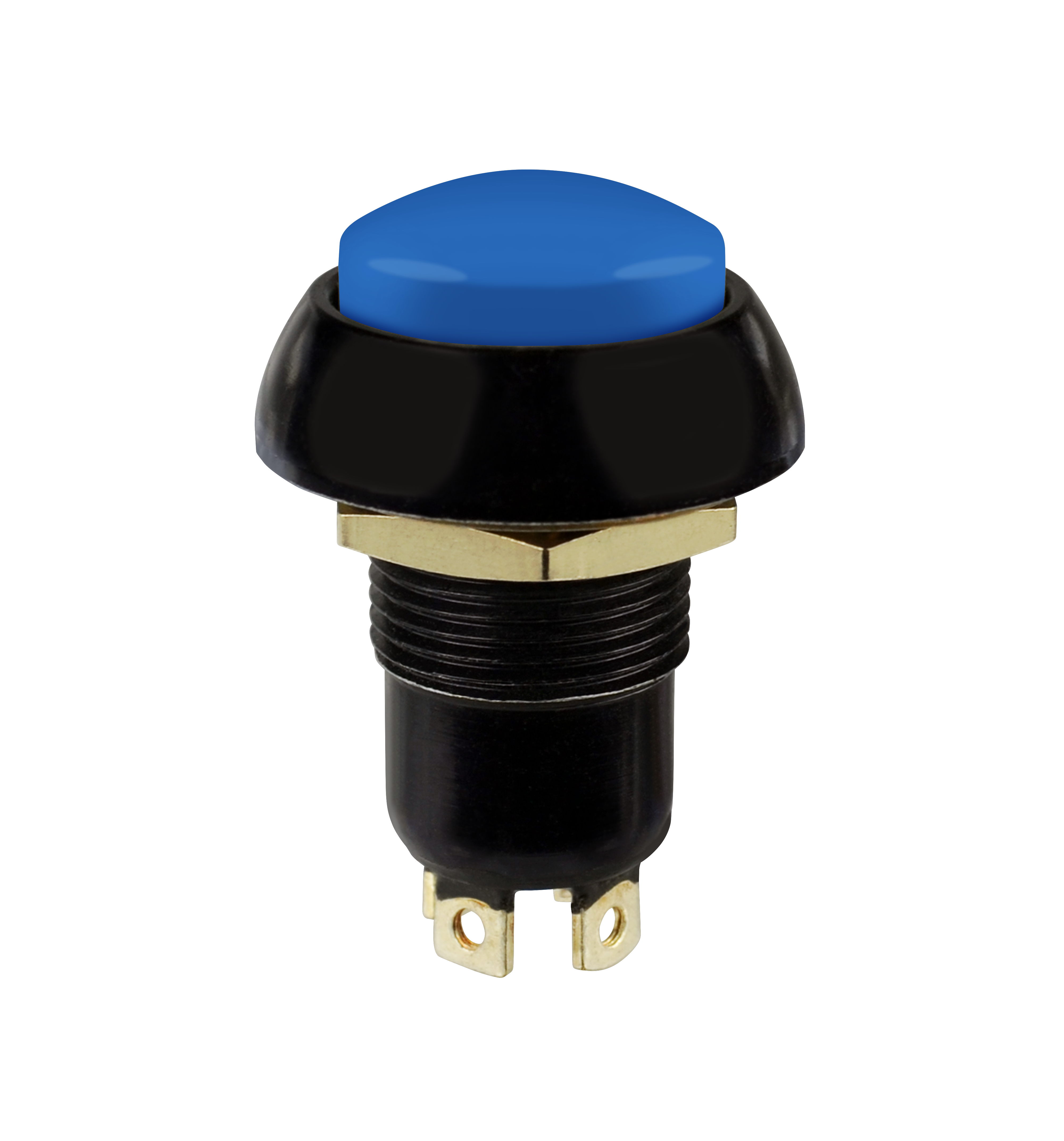

Dome Style, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P3-D231122W
Series:P3-D
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.53 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):100,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP3-D231122W

Detailed Description

Introducing the P3-D Series Dome Style, Sealed, Momentary Action Pushbutton Switch with SKU P3-D231122W. This high-performance switch features a durable black aluminum housing and panel mount design, perfect for industrial applications. The button, made of thermoplastic with a raised dome actuator, ensures reliable operation with a 100,000 cycle durability rating. With an IP6K8S ingress protection rating, it guarantees resistance to dust and water, ideal for harsh environments. The SPST-NO contact configuration, gold-plated brass contacts, and 10A current rating ensure efficient electrical connectivity. Operating at temperatures ranging from -55°C to 85°C, and with voltage ratings of 115VAC and 28VDC, this switch offers versatility and reliability. Suitable for a wide range of uses, from machinery to control panels, the P3-D231122W is a top choice for demanding applications.
