| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-121122 |
| Series: | P4 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPDT 3 Terminal |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .16 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP4-121122 |

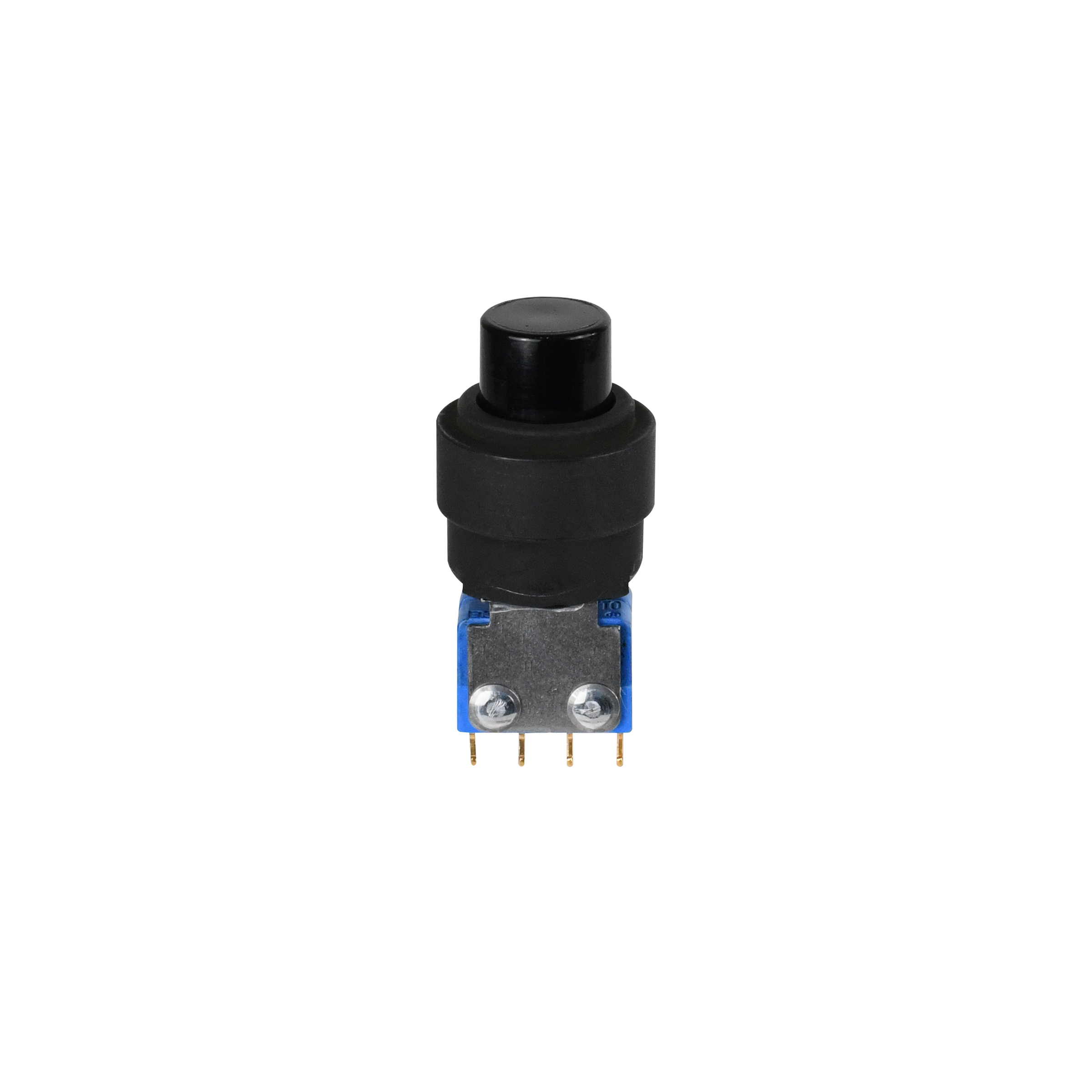

P4-121122
Specifications
Detailed Description
Introducing the P4-121122, a versatile push button switch from the P4 series. Featuring a sleek black cap and case, this non-illuminated switch is designed for reliability in demanding environments. The flat round button actuator, made of durable thermoplastic, offers a comfortable two-step momentary action. With a 5A current rating and gold-plated brass contacts, it ensures efficient conductivity. Panel mountable with solder termination, it guarantees easy installation. Its sealed construction and aluminum housing provide durability, with a 25,000 cycle lifespan. Operating at temperatures ranging from -55°C to 125°C and a voltage rating of 28VDC, it is suitable for various applications. The P4121122 is a high-quality component, perfect for use in hi-rel scenarios, offering SPDT 3 terminal contact configuration for enhanced functionality.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
