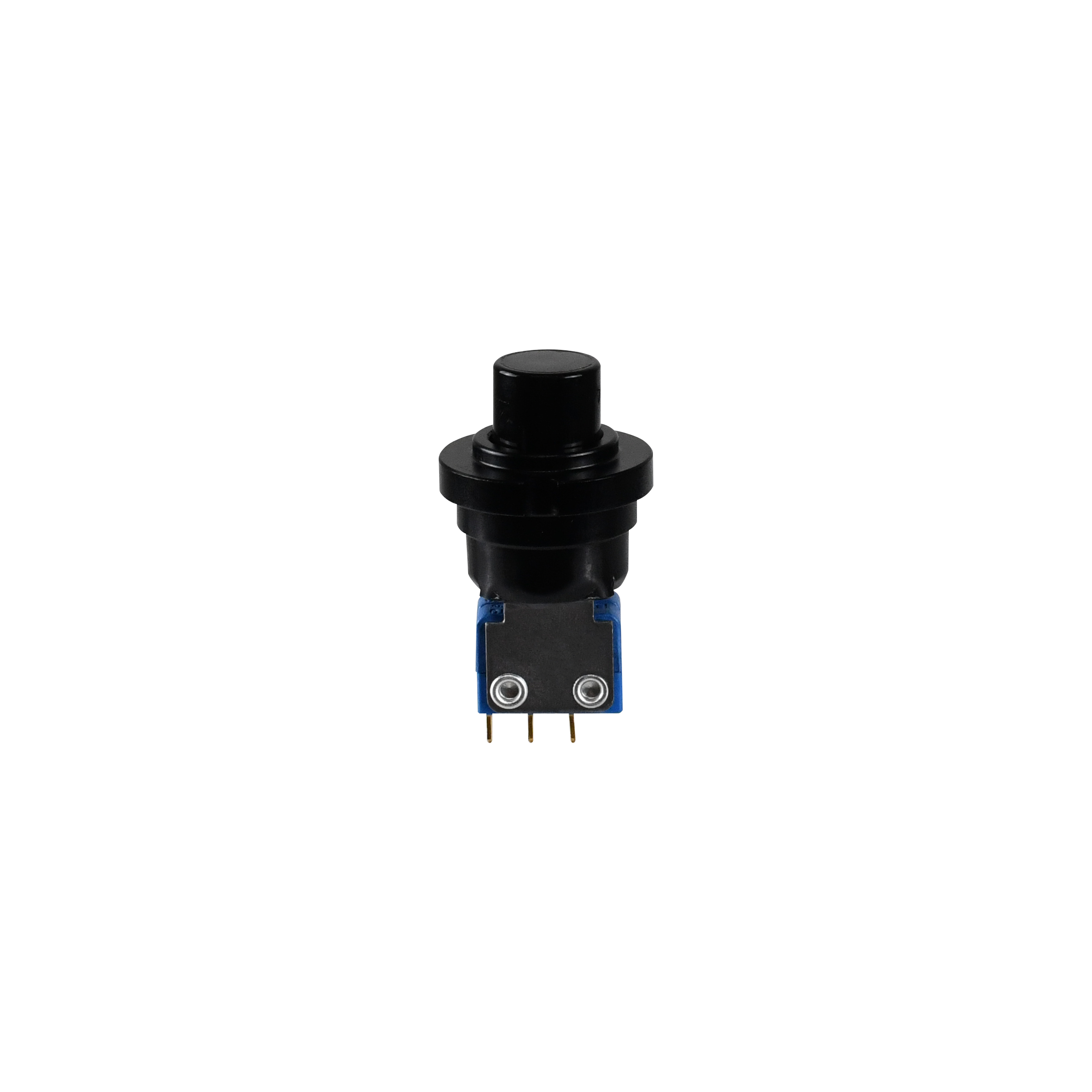

P4-224123

OTTP4_224123
Heilind Number:OTTP4-224123
Manufacturer:OTTO Controls
Manufacturer Number:P4-224123
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Auxillary Actuators, Momentary Action, Two Step Custom Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P4-224123
Series:P4
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:DPDT 8 Terminal
Actuator Type:Button (Flat)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Orange
Actuator Length:.25 in
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP4-224123

Detailed Description

Introducing the P4-224123, a high-performance push button switch designed for demanding applications. Part of the P4 series, this switch features a durable aluminum housing with a sleek silver case and a vibrant orange cap. Engineered for reliability, it boasts an IP6K4S rating for dust and water resistance, making it ideal for use in harsh environments. The DPDT 8 terminal configuration and gold-plated contacts ensure efficient connectivity, while the 5A current rating and 115VAC/28VDC voltage ratings make it suitable for a wide range of systems. With a thermoplastic actuator and solder termination, installation is easy and secure. This sealed switch offers momentary action with a two-step custom pushbutton, providing tactile feedback and precise control. Ideal for applications where durability and performance are essential, the P4-224123 is a trusted choice for engineers and designers.
