P4-324111

OTTP4_324111
Heilind Number:OTTP4-324111
Manufacturer:OTTO Controls
Manufacturer Number:P4-324111
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

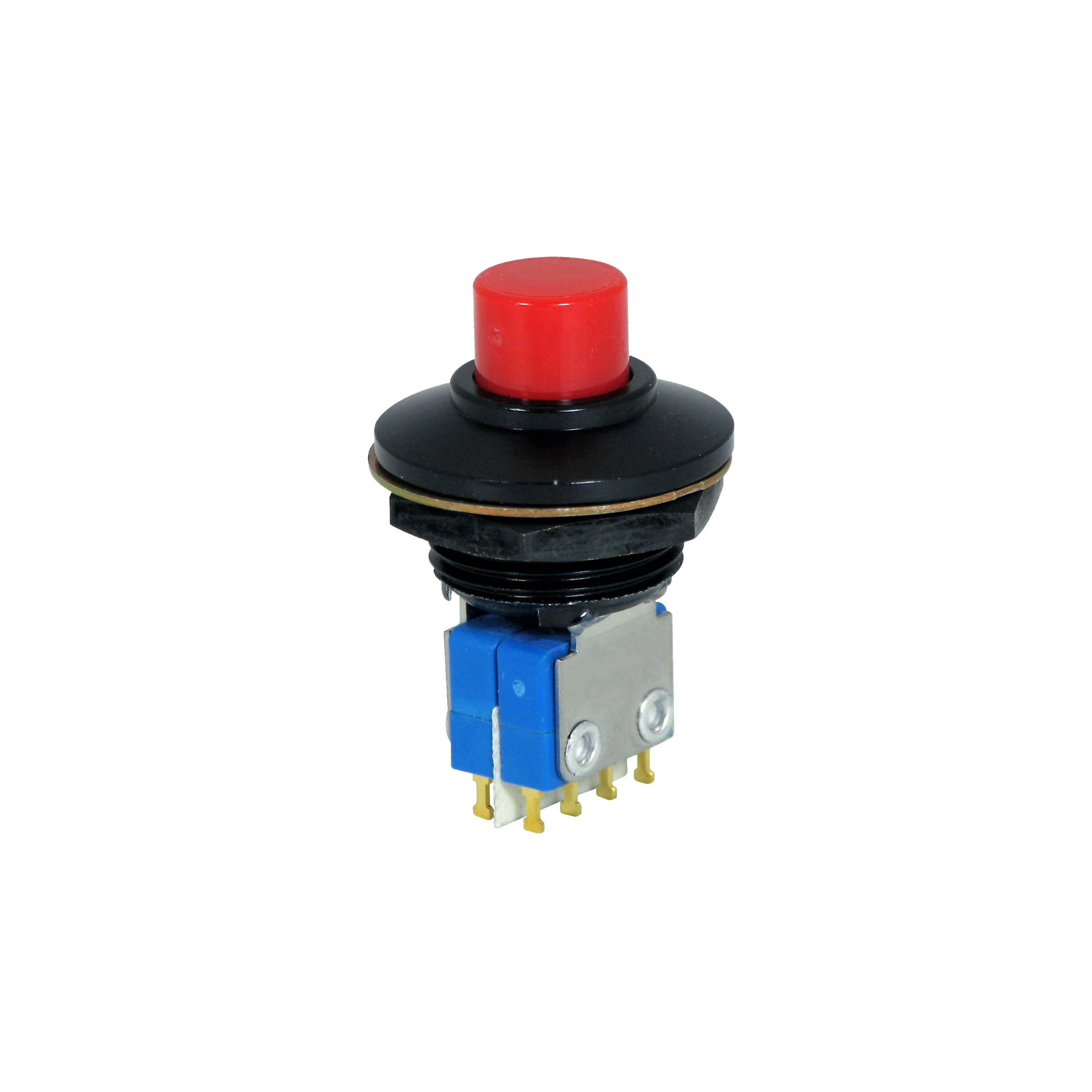

Auxillary Actuators, Momentary Action, Two Step Custom Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P4-324111
Series:P4
Cap Color:Red
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Gold
Contact Material:Silver
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:DPDT 8 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP4-324111

Detailed Description

Introducing our P4 Series Red Button Pushbutton Switch with an IP6K4S rating, perfect for demanding environments. Featuring a sleek Silver case and a durable Aluminum housing, this sealed switch ensures reliable performance even in harsh conditions. The flat Round Button actuator, made of Thermoplastic, offers comfortable operation. With a current rating of 5A and DPDT 8 Terminal contact configuration, it's ideal for various applications. Panel mountable and solder terminations make installation easy. This switch guarantees longevity with a durability rating of 25,000 cycles. Whether you need a momentary action switch for industrial machinery or aerospace systems, this two-step custom pushbutton is a versatile and dependable choice. Operating smoothly at temperatures ranging from -40°C to 85°C, with voltage ratings of 115 VAC and 28 VDC, it's suitable for a wide range of uses. Elevate your control panel with the reliability of our P4 Series Switch.
