P4-324121

OTTP4_324121
Heilind Number:OTTP4-324121
Manufacturer:OTTO Controls
Manufacturer Number:P4-324121
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Auxillary Actuators, Momentary Action, Two Step Custom Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P4-324121
Series:P4
Cap Color:Red
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Gold
Contact Material:Silver
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:DPDT 8 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP4-324121

Detailed Description

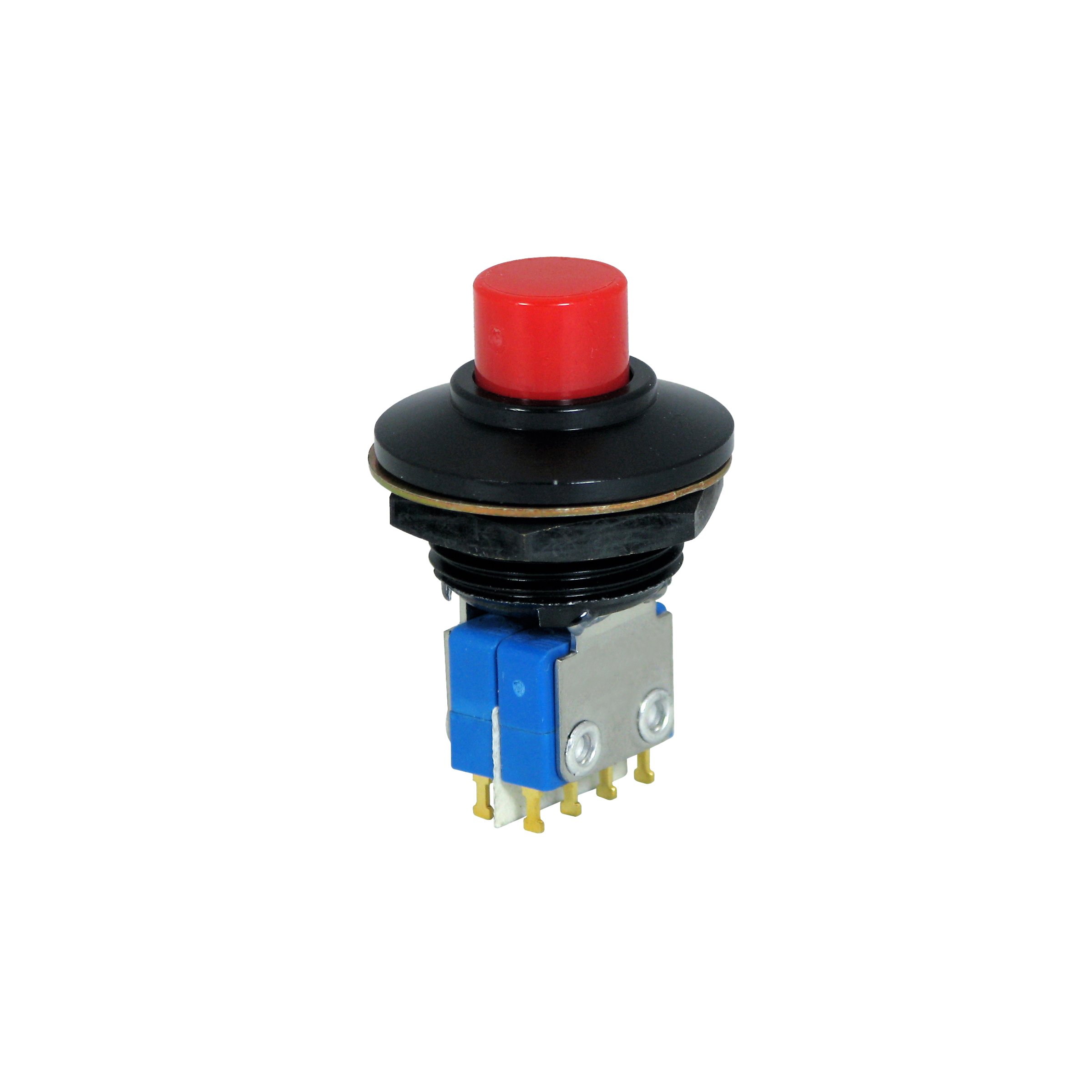

Introducing the P4-324121 Sealed Push Button Switch, a high-performance component designed for demanding environments. Featuring a durable aluminum housing and IP6K4S ingress protection rating, this switch is built to withstand harsh conditions with ease. The red button with a flat round actuator offers a sleek design, while the DPDT 8 Terminal contact configuration ensures reliable connectivity. With a 5A current rating and 115VAC/28VDC voltage ratings, it is suitable for various applications. The gold-plated silver contacts guarantee excellent conductivity, and the solder termination type allows for secure installation. Ideal for industrial and aerospace use, the P4 series switch is a versatile solution for your control panel needs.
