P4-324221

OTTP4_324221
Heilind Number:OTTP4-324221
Manufacturer:OTTO Controls
Manufacturer Number:P4-324221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

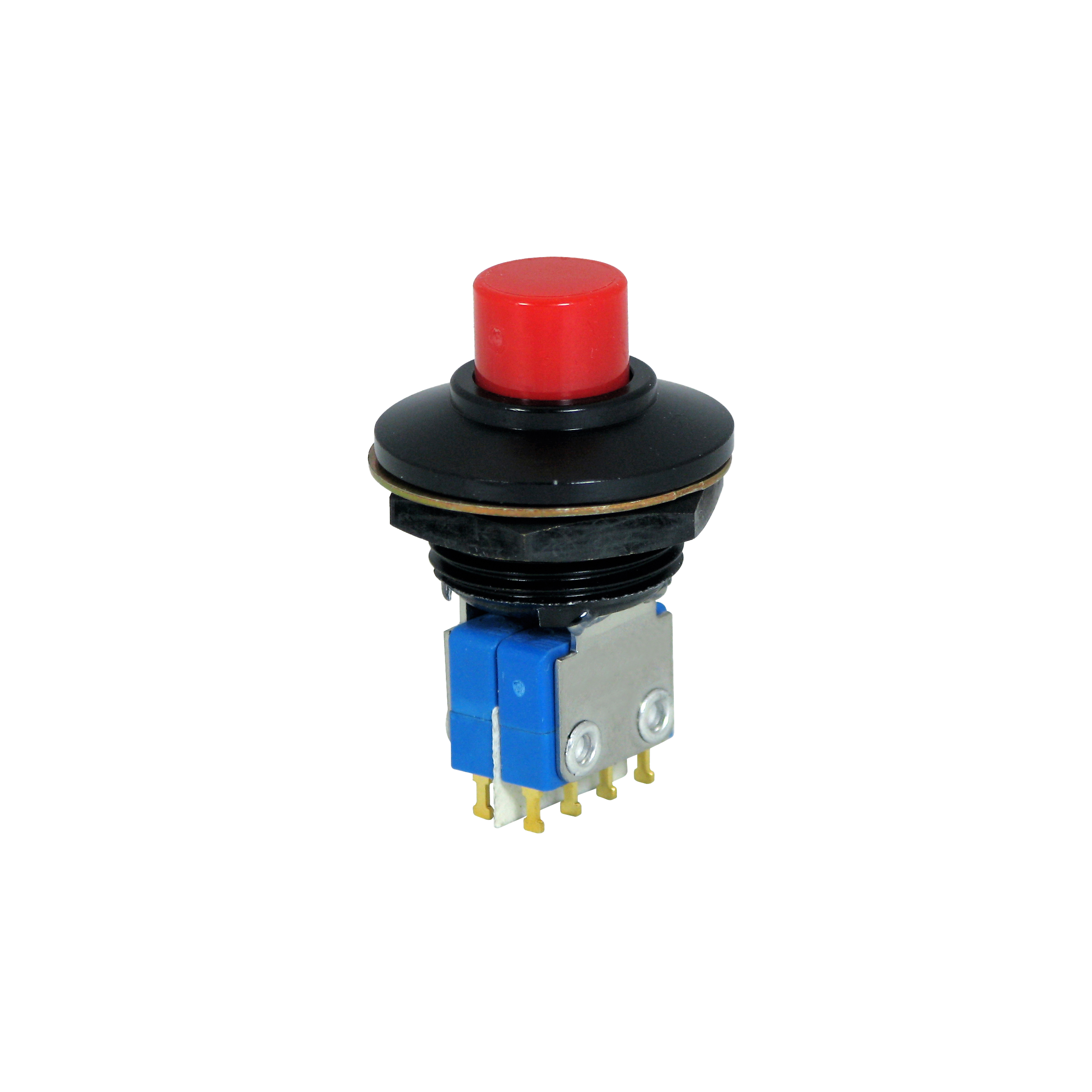

Auxillary Actuators, Momentary Action, Two Step Custom Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P4-324221
Series:P4
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:DPDT 8 Terminal
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.25 in
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP4-324221

Detailed Description

Introducing the P4-324221, a high-performance push button switch from our P4 series. Featuring a durable aluminum housing with a sleek black case and a vibrant red cap, this switch is designed for maximum reliability in demanding environments. With an IP6K4S rating, it offers superb protection against dust and water ingress. The DPDT 8 Terminal contact configuration, along with a 5A current rating, ensures efficient power transmission. The button, made of thermoplastic, provides a comfortable actuation experience. Ideal for panel mount applications, this switch guarantees long-lasting performance with a durability rating of 25,000 cycles. Whether operating in extreme temperatures ranging from -40°C to 85°C or handling voltages up to 115VAC/28VDC, it excels in versatility. Perfect for industrial, automotive, or aerospace use, this sealed push button switch is a reliable choice for critical control systems.
