| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-333122 |
| Series: | P4 |
| Cap Color: | Black |
| IP Rating: | IP6K4S |
| Case Color: | Black |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flat) |
| Actuator Shape: | Round |
| Current Rating: | 5 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .25 in |
| Contact Plating: | Gold |
| Contact Material: | Silver |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Wire Wrap |
| Actuator Material: | Thermoplastic |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | DPDT 6 Terminal |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | OTTP4-333122 |

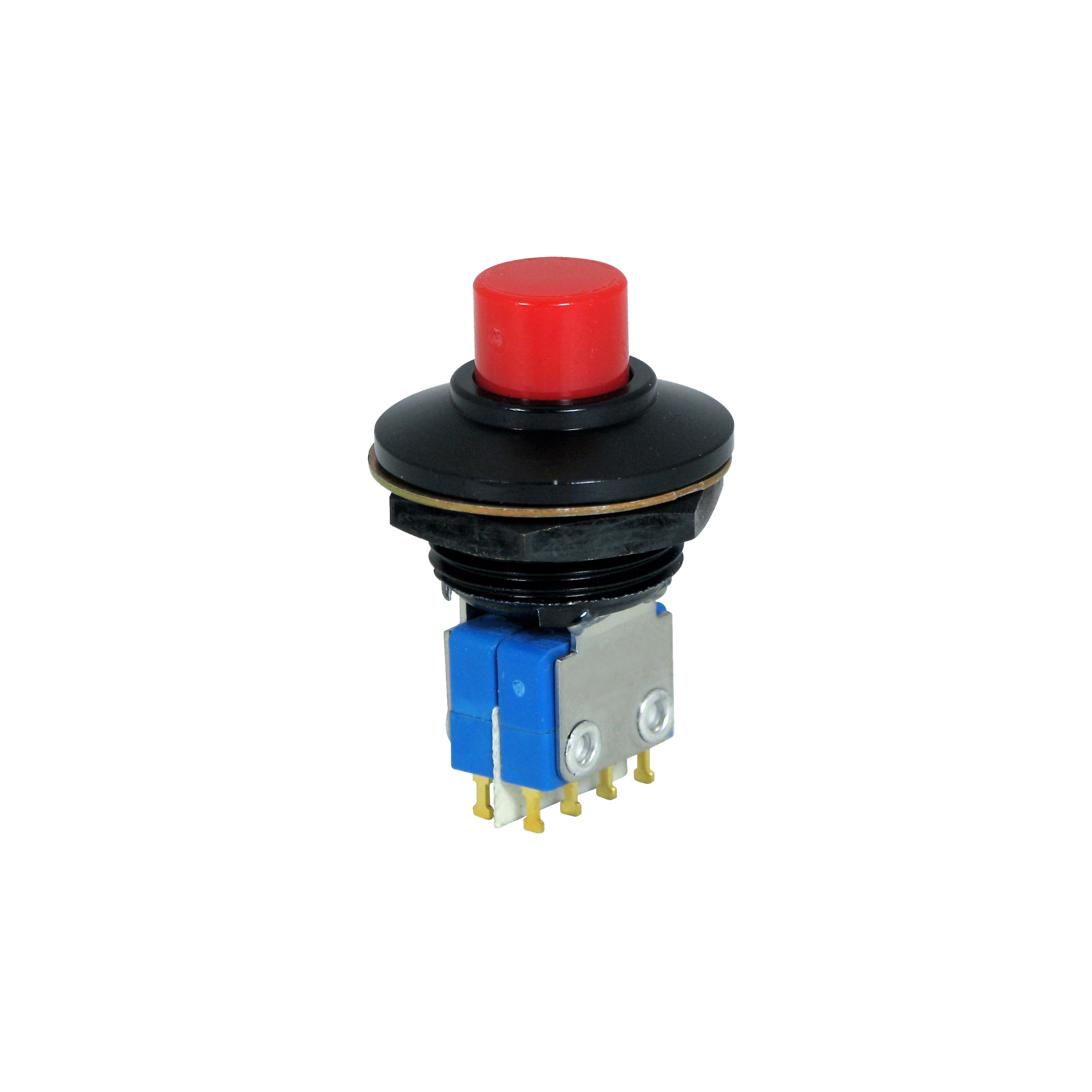

P4-333122
Specifications
Detailed Description
Introducing the P4 Series Auxiliary Actuators, a reliable and versatile solution for your switching needs. With a sleek black casing and IP6K4S rating, these push buttons are designed for durability in demanding environments. Featuring a round flat button actuator and wire wrap termination, they offer easy installation on panels. The DPDT 6-terminal contact configuration, with gold plating on silver contacts, ensures efficient conductivity. Operating at temperatures ranging from -40°C to 85°C and rated for 25,000 cycles, these switches guarantee long-lasting performance. Whether used in industrial machinery or control panels, the P4 Series provides a seamless and responsive user experience. Upgrade your equipment with these high-quality sealed push buttons for enhanced functionality.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
