| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-333221 |
| Series: | P4 |
| Cap Color: | Red |
| IP Rating: | IP6K4S |
| Case Color: | Black |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flat) |
| Actuator Shape: | Round |
| Current Rating: | 5 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .25 in |
| Contact Plating: | Gold |
| Contact Material: | Silver |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Wire Wrap |
| Actuator Material: | Thermoplastic |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | DPDT 6 Terminal |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | OTTP4-333221 |
P4-333221
Specifications
Detailed Description

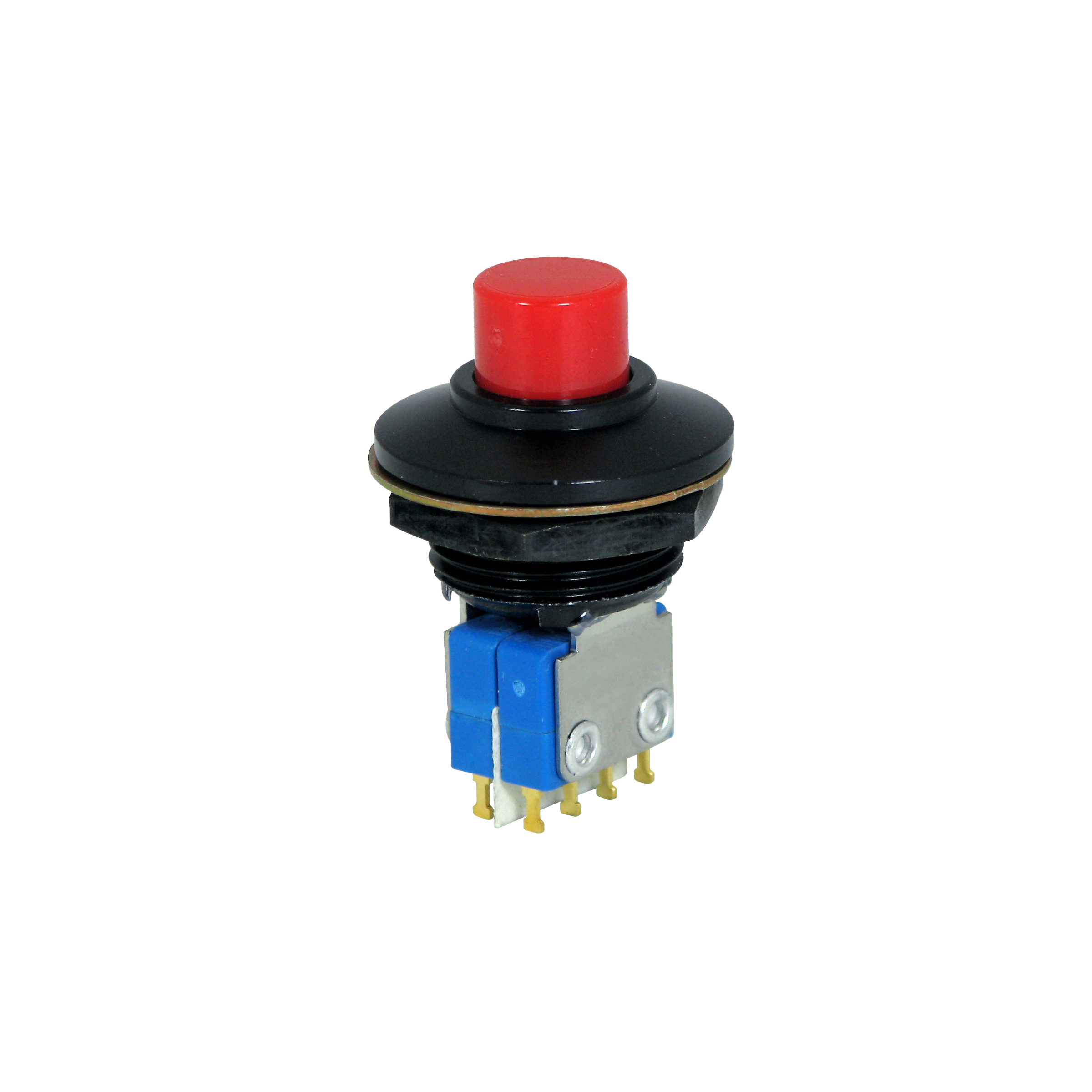

Introducing the P4-333221, a high-performance Push Button Switch from the P4 series. Featuring a sleek Black case with a vibrant Red cap, this switch is designed for durability with a rating of 25,000 cycles. Its IP6K4S sealing ensures reliable operation even in harsh environments. The DPDT 6 Terminal contact configuration, with Gold plating and Silver contacts, guarantees efficient conductivity. Ideal for panel mounting, it has a current rating of 5A and voltage ratings of 115VAC and 28VDC. The button, made of Thermoplastic, offers a comfortable actuation with a flat round shape and a 0.25-inch length. Perfect for applications requiring momentary action, the P4-333221 is a versatile and dependable choice in the realm of Push Button Switches.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
