P4-333222

OTTP4_333222
Heilind Number:OTTP4-333222
Manufacturer:OTTO Controls
Manufacturer Number:P4-333222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

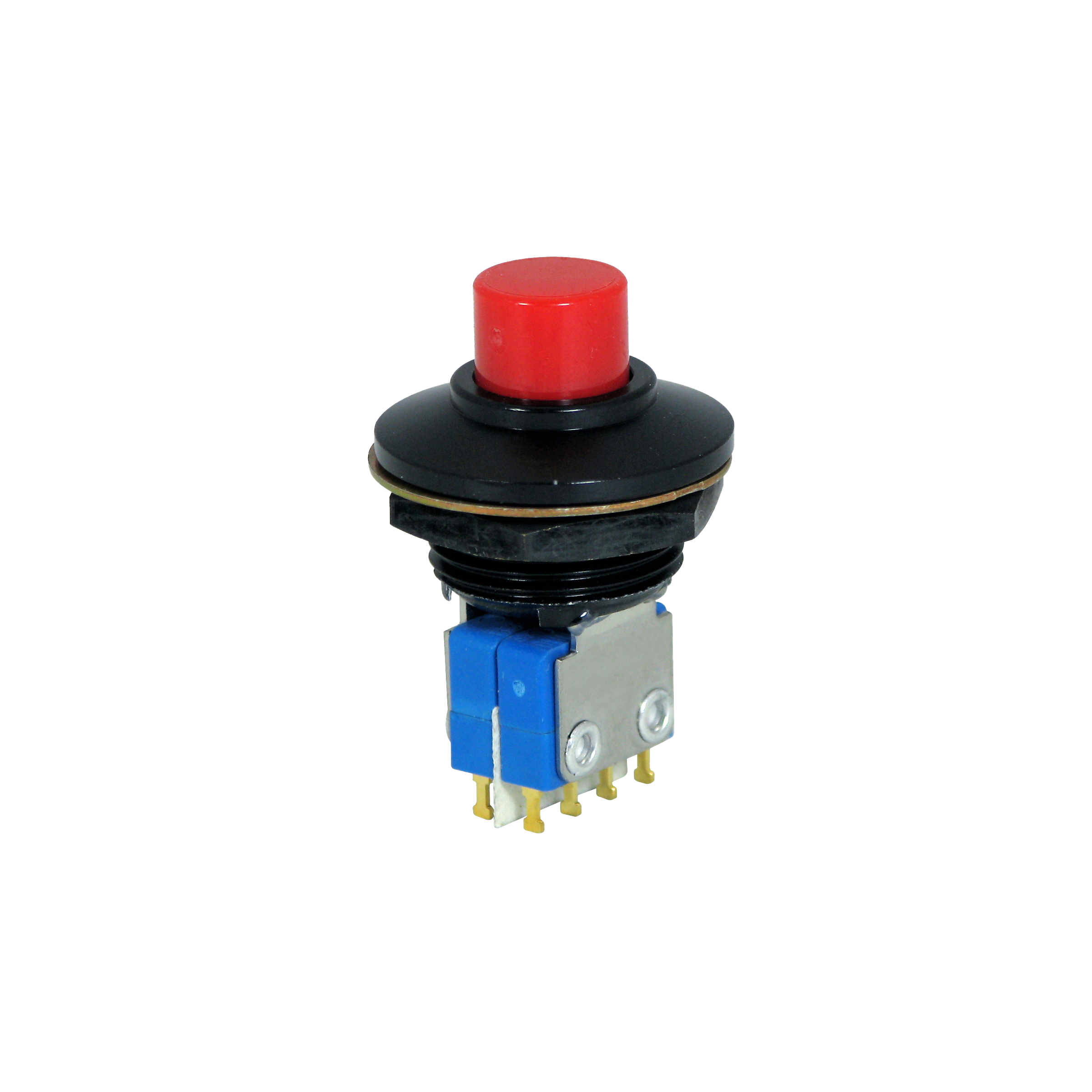

Auxillary Actuators, Momentary Action, Two Step Custom Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P4-333222
Series:P4
Cap Color:Black
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Gold
Contact Material:Silver
Housing Material:Aluminum
Type:Sealed
Termination Type:Wire Wrap
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:DPDT 6 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP4-333222

Detailed Description

Introducing the P4 series Auxiliary Actuators, featuring a sleek black design with a durable aluminum housing. These non-illuminated pushbutton switches are perfect for panel mounting applications, offering a reliable solution for various industries. The flat round button actuator, made of high-quality thermoplastic, ensures a comfortable interface. With a DPDT 6 Terminal contact configuration and gold-plated silver contacts, these switches guarantee optimal performance. Rated for 5A at 115VAC and 28VDC, they are suitable for a wide range of voltage applications. With an IP6K4S rating, they are sealed to withstand harsh environments, while their 25,000-cycle durability ensures long-lasting operation. From automotive to industrial control systems, the P4 series is the ideal choice for demanding applications. Rest assured, they are RoHS compliant, meeting environmental standards. Upgrade your control panel with the P4 Auxiliary Actuators and experience reliable, high-performance switching.
