P4-334222

OTTP4_334222
Heilind Number:OTTP4-334222
Manufacturer:OTTO Controls
Manufacturer Number:P4-334222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

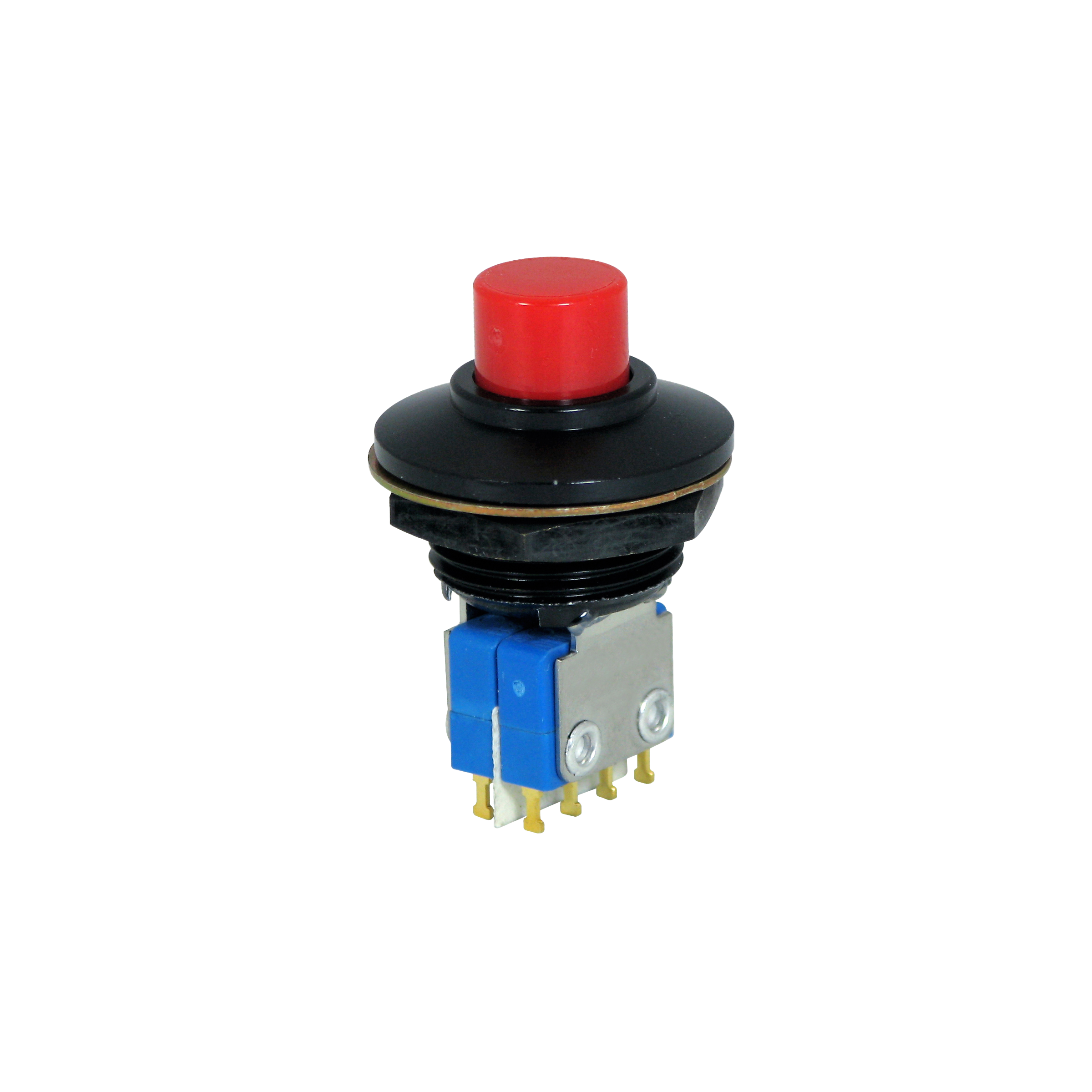

Auxillary Actuators, Momentary Action, Two Step Custom Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P4-334222
Series:P4
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:DPDT 8 Terminal
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Wire Wrap
Actuator Shape:Round
Cap Color:Black
Actuator Length:.25 in
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP4-334222

Detailed Description

Introducing the P4-334222, a high-performance sealed push button switch designed for critical applications. Part of the P4 series, this switch features a durable aluminum housing in sleek black, ensuring longevity and reliability even in harsh environments. With an IP6K4S rating, it guarantees protection against dust and water ingress. The flat round button actuator, made of thermoplastic, offers a comfortable and responsive interface. Gold-plated contacts with silver plating ensure excellent conductivity, while the DPDT 8-terminal configuration allows for versatile connectivity. Rated for 5A at 115VAC and 28VDC, this switch is suitable for a wide range of power applications. With a temperature range of -40°C to 85°C and a durability rating of 25,000 cycles, it's built to withstand demanding conditions. Perfect for industrial, automotive, and aerospace use, the P4-334222 sets a new standard in performance and reliability in push button switches.
