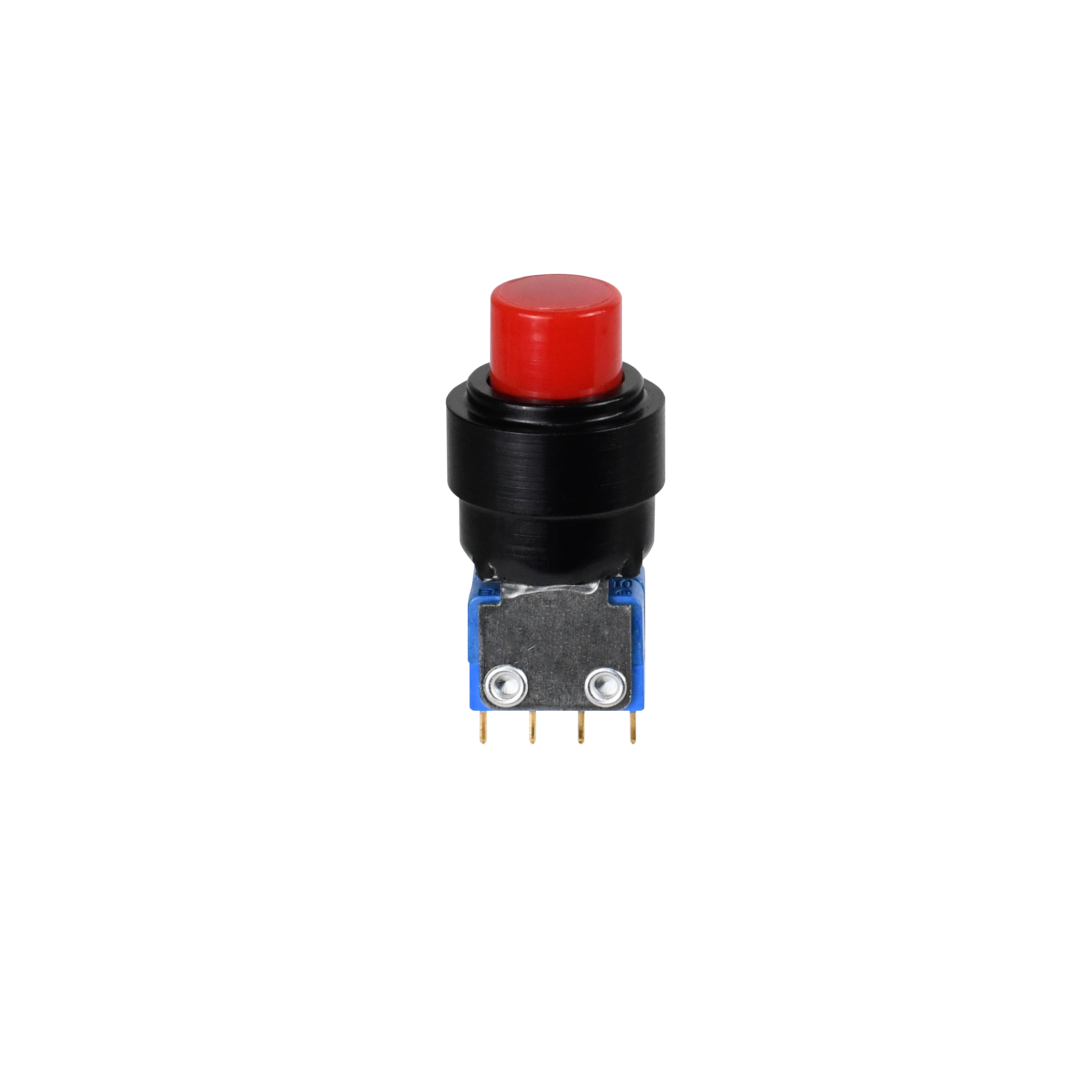

P4-523328

OTTP4_523328
Heilind Number:OTTP4-523328
Manufacturer:OTTO Controls
Manufacturer Number:P4-523328
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Auxillary Actuators, Momentary Action, Two Step Custom Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P4-523328
Series:P4
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:DPDT 6 Terminal
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Gray
Actuator Length:.19 in
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP4-523328

Detailed Description

Introducing the P4 Series Auxiliary Actuators, featuring a custom two-step pushbutton design for precise control. With a sleek black case and a durable aluminum housing, these panel-mount switches are built to withstand tough environments. The flat round button, made of thermoplastic, offers comfortable actuation. Gold-plated brass contacts ensure reliable conductivity, while the DPDT 6-terminal configuration allows for versatile wiring options. Rated for 25,000 cycles of operation, these sealed switches have an IP6K4S ingress protection rating, making them suitable for industrial use. Operating between -40°C and 85°C, with a maximum current rating of 5A and voltage ratings of 115VAC and 28VDC, they guarantee performance in a wide range of applications. Upgrade your control systems with the P4523328, the perfect combination of durability and precision.
