P4-633121

OTTP4_633121
Heilind Number:OTTP4-633121
Manufacturer:OTTO Controls
Manufacturer Number:P4-633121
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

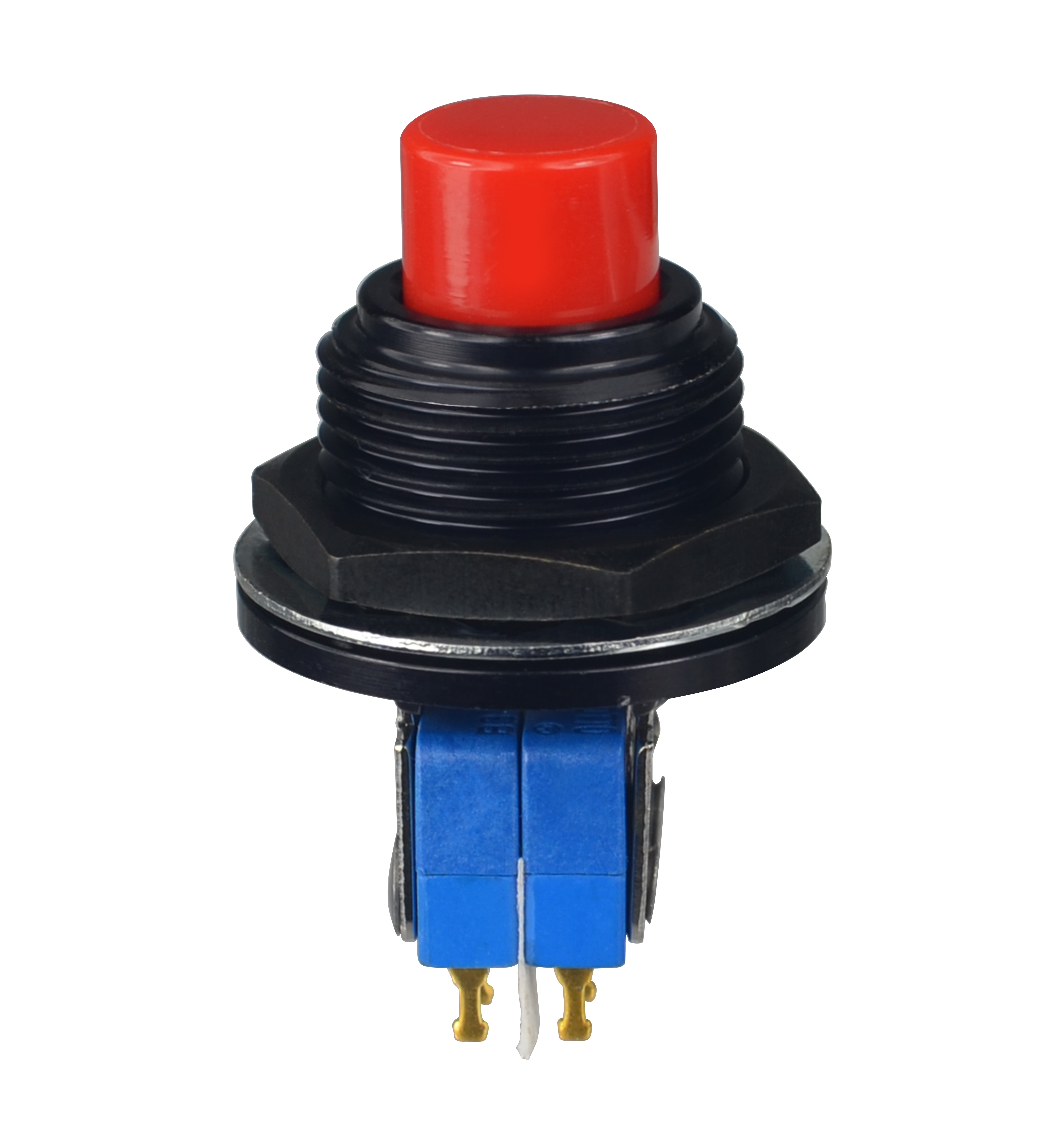

Auxillary Actuators, Momentary Action, Two Step Custom Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P4-633121
Series:P4
Cap Color:Red
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Gold
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Wire Wrap
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:DPDT 6 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP4-633121

Detailed Description

Introducing the P4-633121, a high-performance push button switch designed for demanding environments. Part of the P4 series, this switch features a durable aluminum housing in sleek black, with a vibrant red button for easy visibility. With an IP6K4S rating, it offers superior protection against dust and water ingress, making it ideal for industrial applications. The DPDT 6 Terminal configuration ensures reliable conductivity, while gold-plated brass contacts guarantee long-lasting performance, even in high-current situations. The button's flat design and round shape provide comfortable actuation, with a 25,000 cycle durability rating for extended use. Suitable for panel mounting with wire wrap termination, this sealed switch operates flawlessly in temperatures ranging from -40°C to 85°C. Whether in aerospace, automotive, or marine settings, the P4-633121 is the perfect choice for critical control systems.
