P4-723121

OTTP4_723121
Heilind Number:OTTP4-723121
Manufacturer:OTTO Controls
Manufacturer Number:P4-723121
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Auxillary Actuators, Momentary Action, Two Step Custom Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P4-723121
Series:P4
Cap Color:Red
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Gold
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:DPDT 6 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP4-723121

Detailed Description

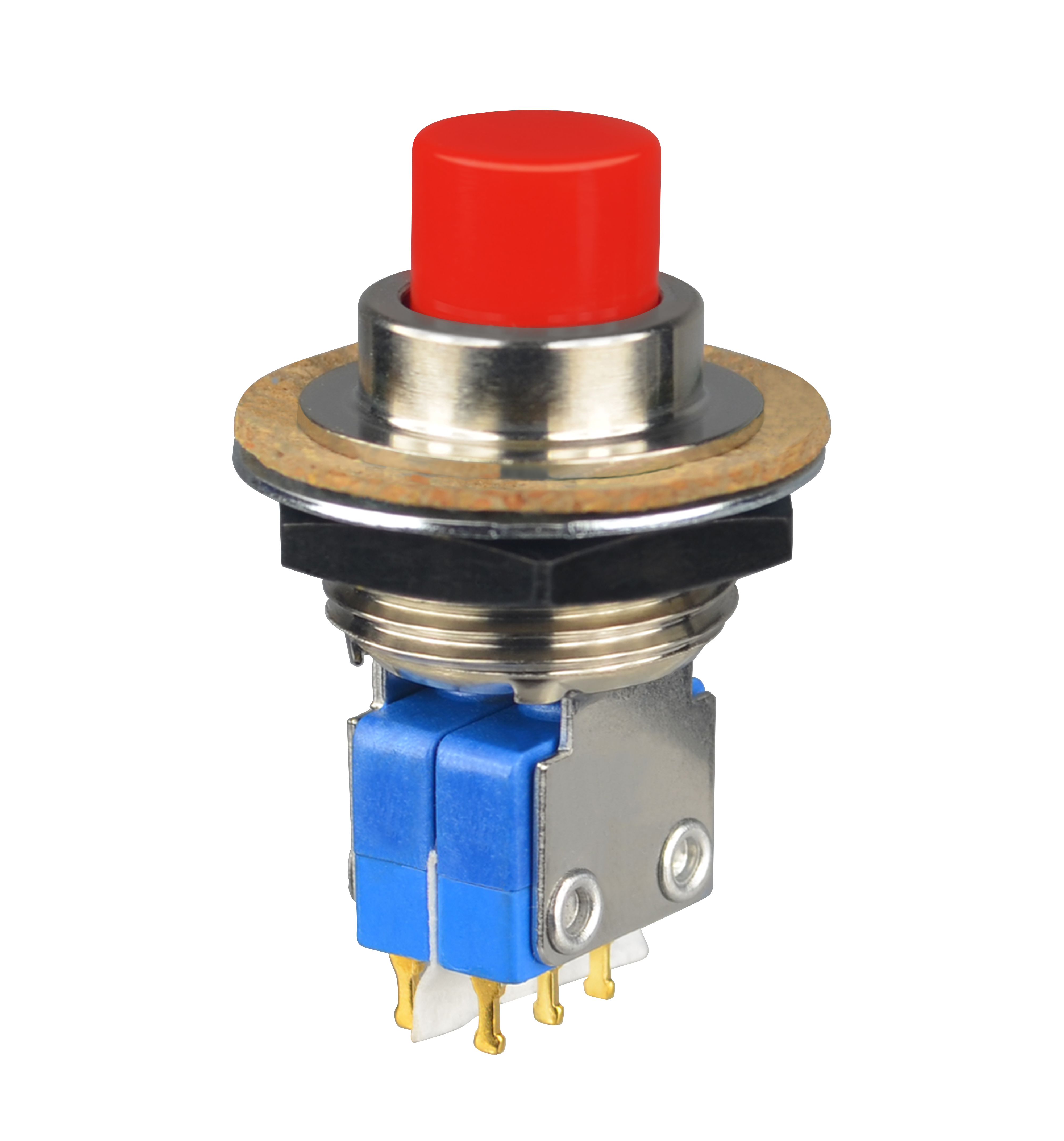

Introducing the P4-723121 Push Button Switch, a durable and versatile component designed for reliable performance in demanding environments. Featuring a sleek black case with a vibrant red button, this switch boasts an IP6K4S rating, ensuring protection against dust and water ingress. The DPDT 6 Terminal configuration offers precise control, while the gold-plated brass contacts guarantee efficient conductivity. With a current rating of 5A and voltage ratings of 115VAC and 28VDC, it is suitable for a wide range of applications. The thermoplastic actuator and aluminum housing provide durability, with a 25,000 cycle lifespan. Ideal for panel mounting, this switch is perfect for industrial and commercial use. Experience seamless operation with the P4-723121 Push Button Switch.
