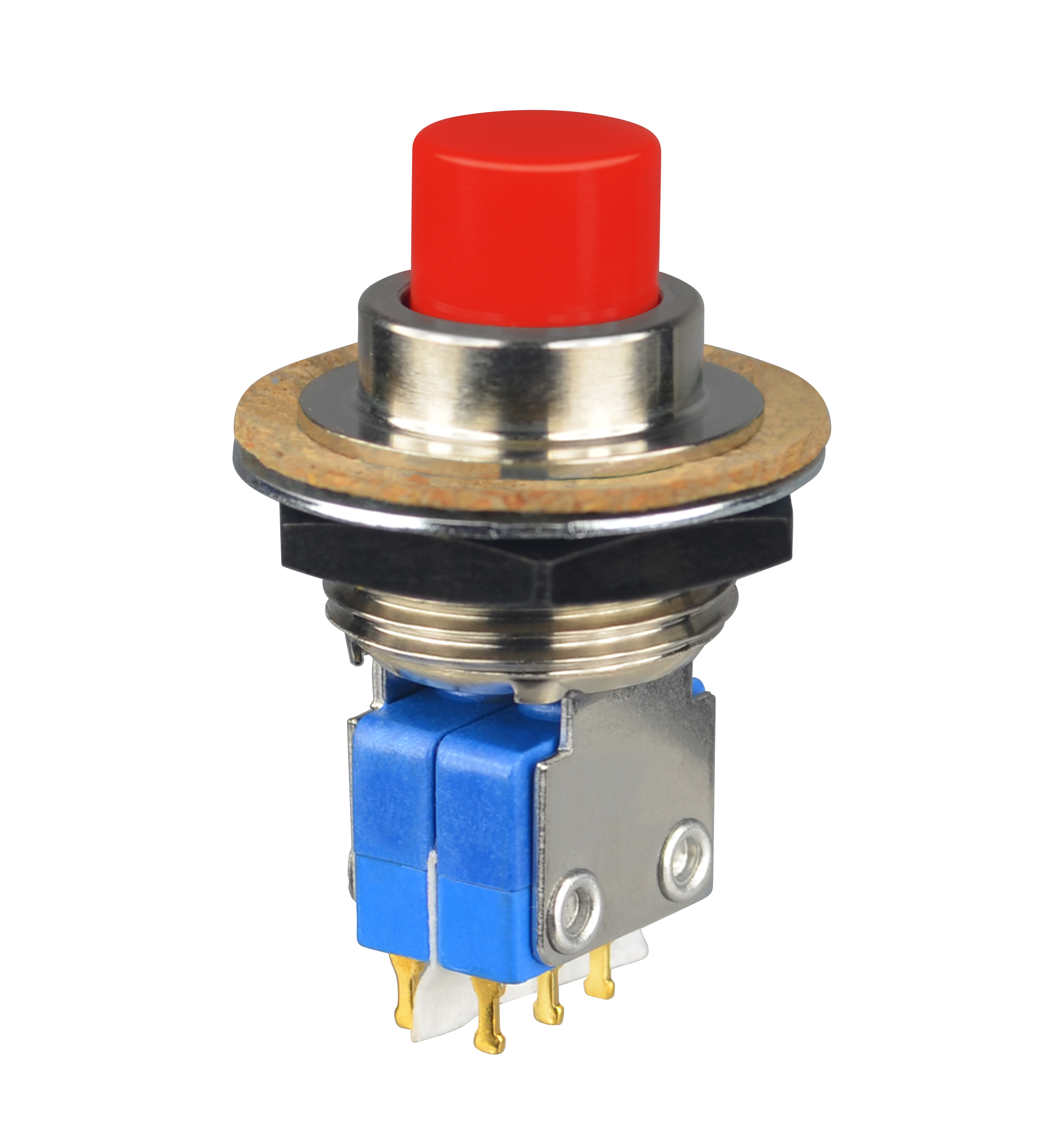

P4-733129

OTTP4_733129
Heilind Number:OTTP4-733129
Manufacturer:OTTO Controls
Manufacturer Number:P4-733129
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Auxillary Actuators, Momentary Action, Two Step Custom Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P4-733129
Series:P4
Cap Color:White
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Gold
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Wire Wrap
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:DPDT 6 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP4-733129

Detailed Description

The P4-733129 Push Button Switch is a versatile component designed for seamless panel mounting. Featuring a durable aluminum housing in sleek black, it offers a high level of protection with an IP6K4S rating, making it ideal for various environments. The white flat button actuator, made of thermoplastic, ensures comfortable use with a round shape and a length of 0.25 inches. With a contact configuration of DPDT 6 Terminal, this switch provides reliable connectivity. It boasts a current rating of 5A, suitable for demanding applications, and gold-plated brass contacts guarantee efficient signal transmission. Whether in industrial machinery or electronic devices, the P4-733129 delivers dependable performance with a longevity of 25,000 cycles. Operating at temperatures ranging from -40°C to 85°C, it offers versatility in usage. With a voltage rating of 115VAC and 28VDC, this switch is suitable for a wide range of power systems. The perfect choice for control panels, the P4-733129 combines quality, durability, and functionality in one sleek package.
