P4-821112

OTTP4_821112
Heilind Number:OTTP4-821112
Manufacturer:OTTO Controls
Manufacturer Number:P4-821112
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

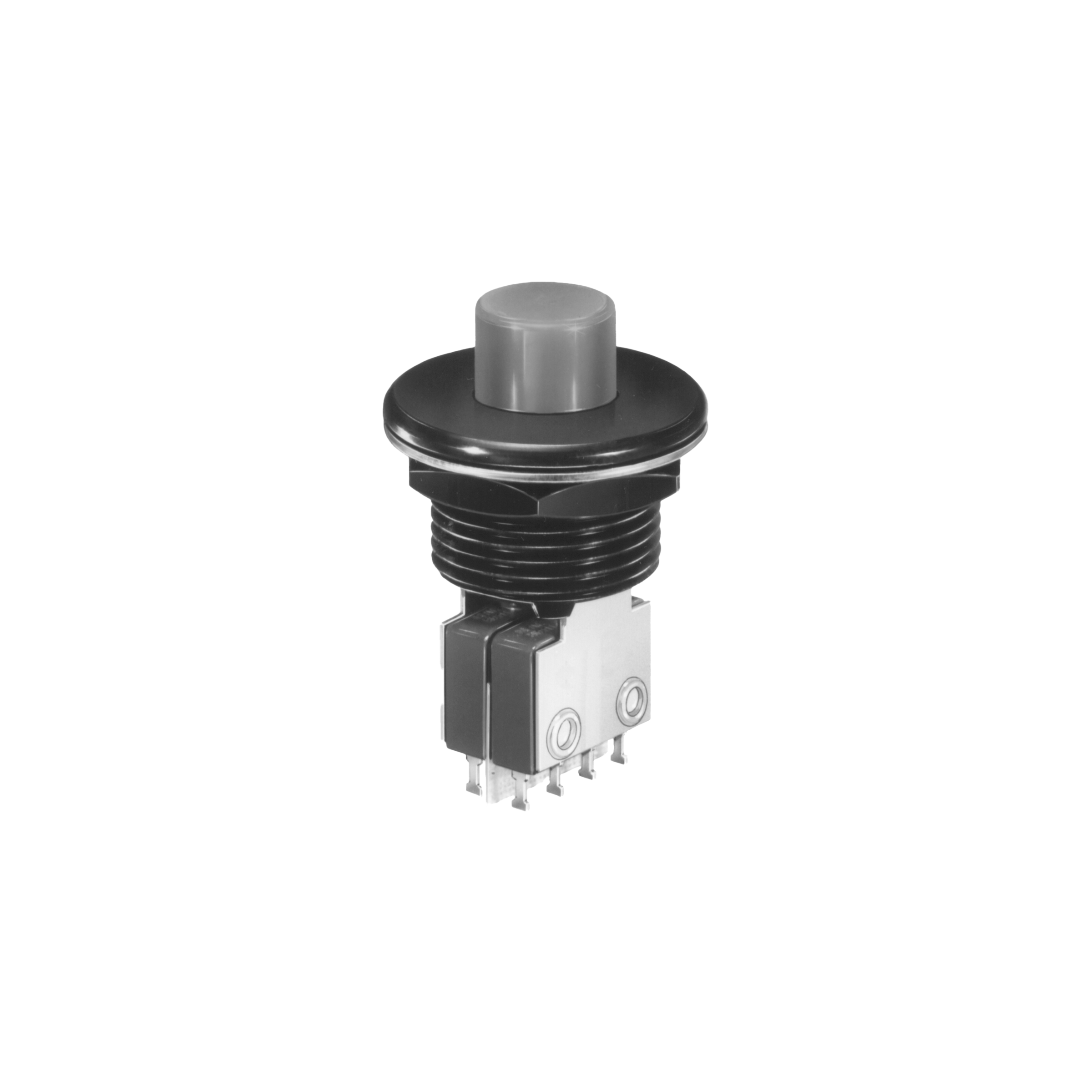

Auxillary Actuators, Momentary Action, Two Step Custom Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P4-821112
Series:P4
Cap Color:Black
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Gold
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT 3 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP4-821112

Detailed Description

Introducing the P4 series Push Button Switch with SKU P4-821112, designed for reliable performance in demanding environments. Featuring a sleek Silver case with a Black cap, this sealed switch is perfect for industrial applications. The Button (Flat) actuator, made of durable Thermoplastic, offers a comfortable touch. With an IP6K4S rating, it ensures protection against dust and water ingress, while the SPDT 3 Terminal configuration allows for versatile usage. Gold-plated Brass contacts guarantee efficient conductivity, even at 5A current. Panel Mount installation and Solder termination make integration easy. Operating at temperatures ranging from -40°C to 85°C, and with a durability rating of 25,000 cycles, this switch is built to last. Whether in aerospace, automotive, or marine settings, the P4 Push Button Switch delivers reliable performance.
