P5-111222

OTTP5_111222
Heilind Number:OTTP5-111222
Manufacturer:OTTO Controls
Manufacturer Number:P5-111222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

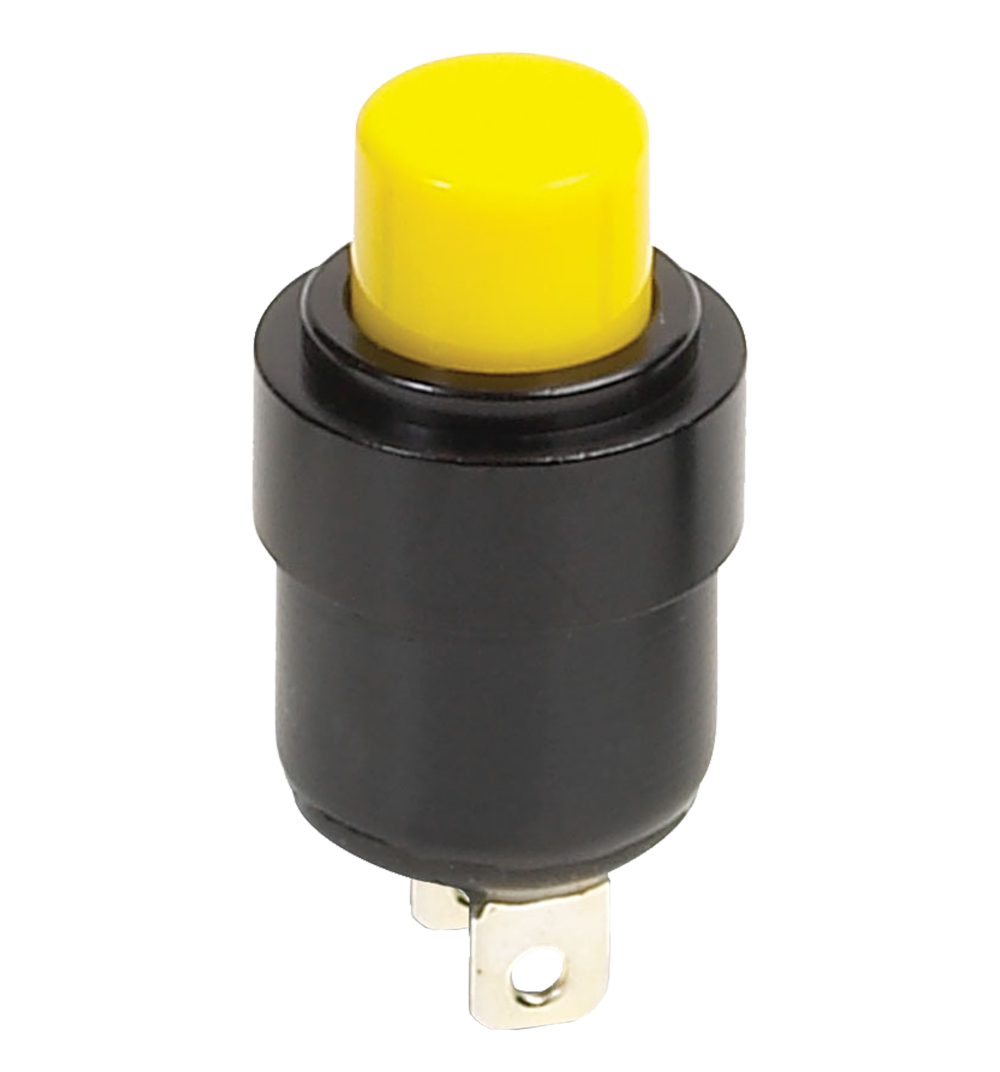

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-111222
Series:P5
Cap Color:Black
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.32 in
Contact Plating:Silver
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
Switch Function:Off-On
SKU:OTTP5-111222

Detailed Description

Introducing the P5-111222 Push Button Switch, a rugged and reliable component designed for demanding industrial applications. Featuring a durable aluminum housing with a sleek black finish, this switch is sealed and Mil Grade, ensuring optimal performance even in harsh environments. With a current rating of 5A and a contact configuration of SPST, it offers precise and efficient operation. The Off-On switch function and Alternate Action actuator type provide versatility in usage. Built for longevity, it boasts a durability rating of 25,000 cycles. The P5 series switch also guarantees safety with a voltage rating of 115VAC and 28VDC, making it suitable for a wide range of electronic systems. Ideal for panel mounting with solder termination, it offers easy installation. Trust in the P5111222 for high-quality, high-reliability performance in your applications.
