P5-118329

OTTP5_118329
Heilind Number:OTTP5-118329
Manufacturer:OTTO Controls
Manufacturer Number:P5-118329
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

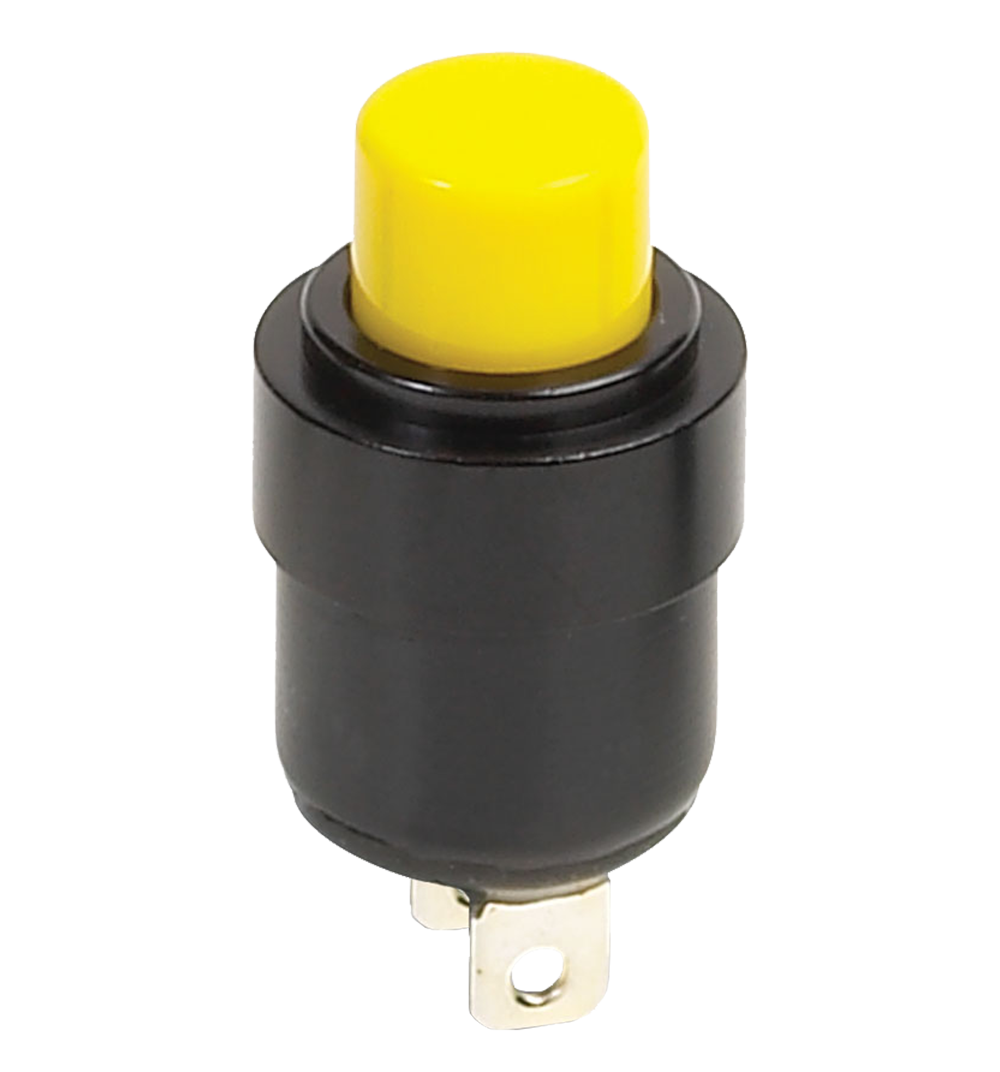

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-118329
Series:P5
Cap Color:White
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.32 in
Contact Plating:Gold
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):3 - 28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
Switch Function:On-On
SKU:OTTP5-118329

Detailed Description

The P5-118329 Pushbutton Switch is a high-grade component that ensures reliable performance in demanding environments. Featuring a durable aluminum housing and sealed construction, this switch is MIL-grade and suitable for use in rugged applications. The flat button actuator with a round shape provides easy operation, while the gold-plated brass contacts guarantee excellent conductivity. With an IP rating of 3, it offers protection against dust and water ingress. The SPDT contact configuration and On-On switch function make it versatile for various circuit control needs. Operating at temperatures ranging from -40°C to 85°C, and with a 25,000-cycle durability rating, this switch is designed to withstand harsh conditions. Whether used in aerospace, military, or industrial settings, the P5 series Pushbutton Switch delivers reliable performance and longevity.
