P5-125322

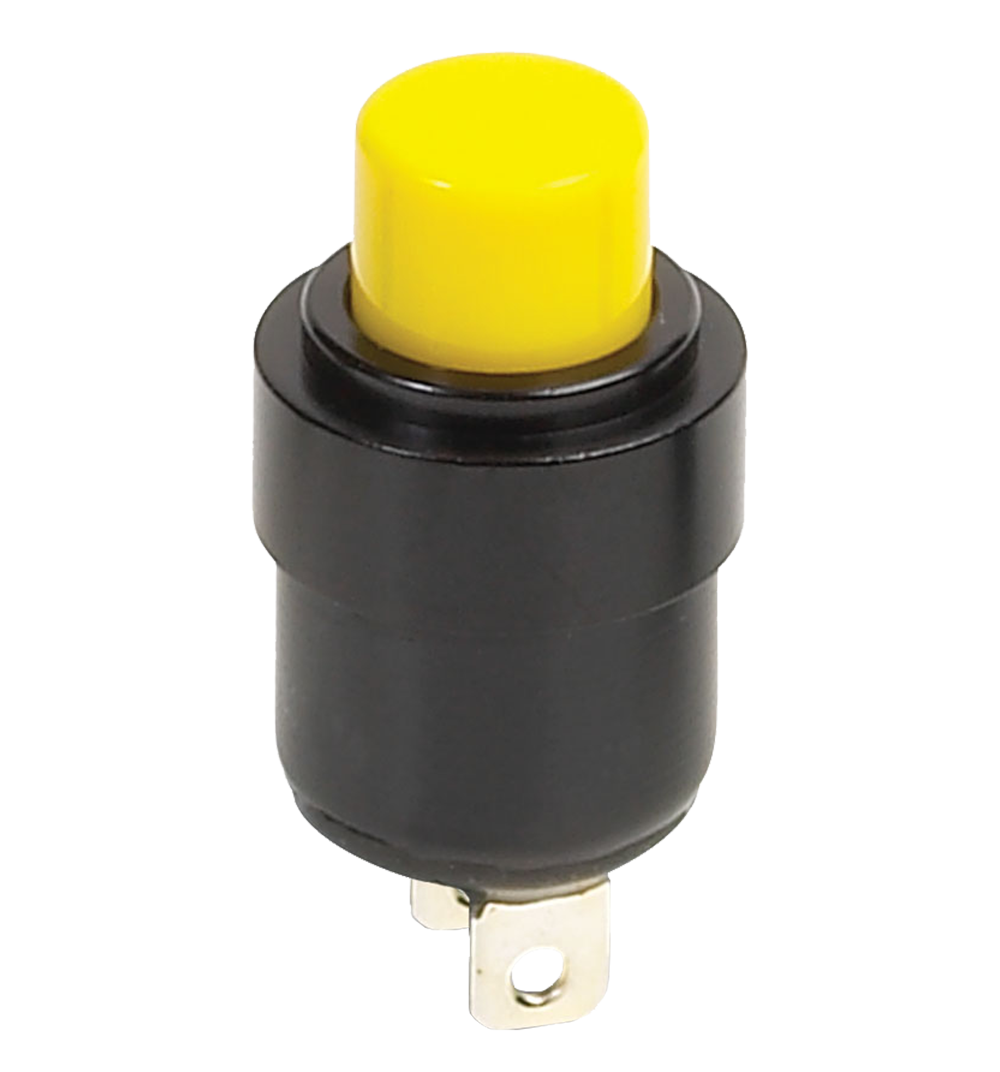

OTTP5_125322
Heilind Number:OTTP5-125322
Manufacturer:OTTO Controls
Manufacturer Number:P5-125322
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-125322
Series:P5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:Symbol 3
Illumination:Not Illuminated
Contact Configuration:SPST
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:Black
Actuator Length:.32 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP5-125322

Detailed Description

Introducing the P5-125322 Sealed Mil Grade Alternate Action Pushbutton Switch, a rugged and reliable component ideal for demanding environments. Featuring a durable aluminum housing with a sleek black finish, this switch is designed for panel mounting. The flat round button actuator, crafted from thermoplastic, offers comfortable and precise operation. With an Off-On switch function and SPST contact configuration, it ensures efficient performance. Rated for 5A current and 115VAC/28VDC voltage, it's suitable for a wide range of applications. Its sealed construction, along with an IP Rating of Symbol 3, guarantees protection against dust and moisture. With a high durability rating of 25,000 cycles and a wide operating temperature range from -40°C to 85°C, this switch is built to last. Perfect for aerospace, military, industrial, and other high-reliability applications, the P5 series pushbutton switch sets a new standard for quality and performance.
