P5-311211

OTTP5_311211
Heilind Number:OTTP5-311211
Manufacturer:OTTO Controls
Manufacturer Number:P5-311211
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

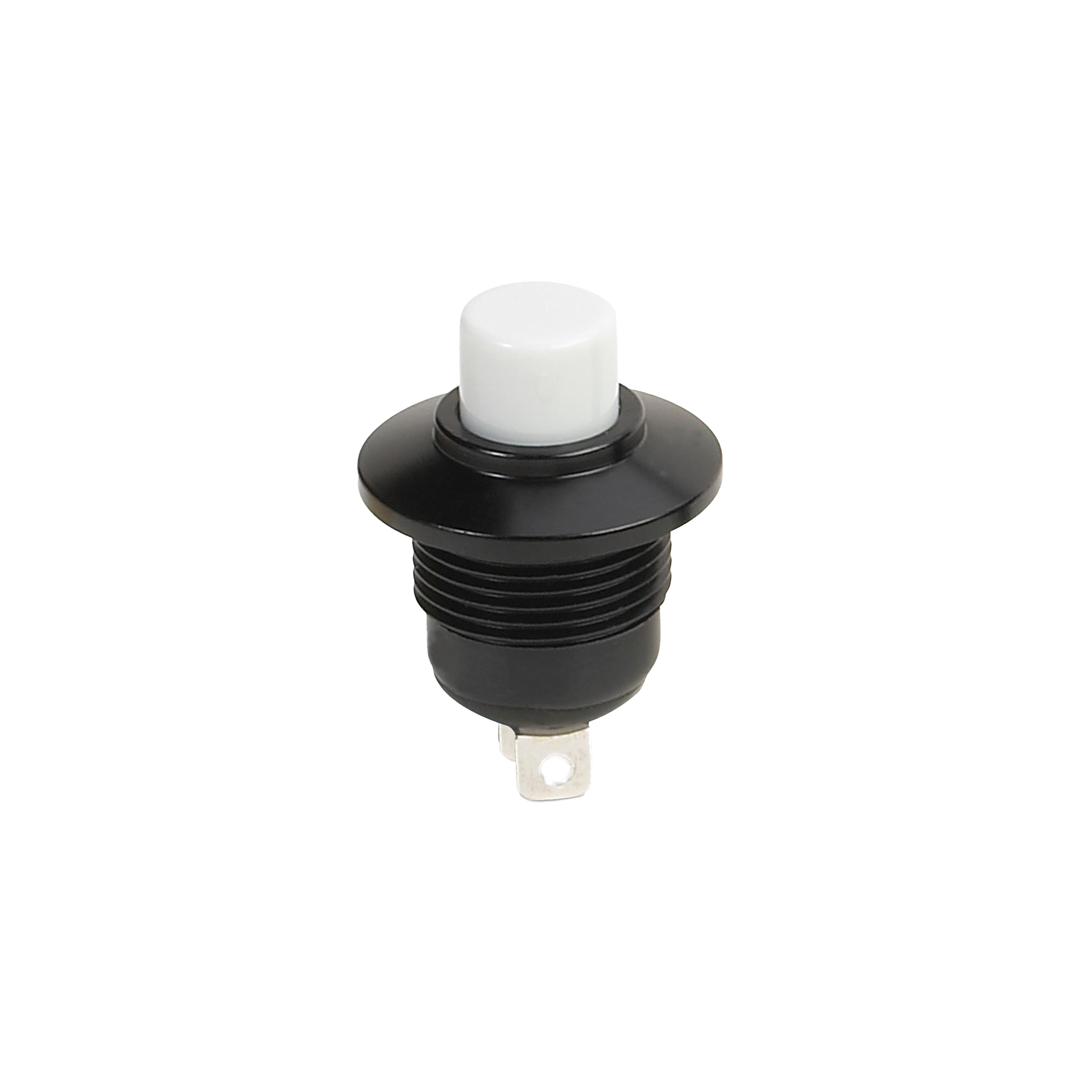

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-311211
Series:P5
Cap Color:Red
IP Rating:Symbol 2
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.263 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP5-311211

Detailed Description

The P5 Series Push Button Switch, SKU P5-311211, is a rugged and reliable component designed for high-performance applications. Featuring a durable aluminum housing with a sleek silver finish, this switch is built to withstand harsh environments. With a red flat button actuator, it offers a tactile response for easy operation. The Sealed and Mil Grade construction ensures protection against dust and moisture, making it ideal for use in aerospace, defense, and industrial settings. Operating at up to 115VAC and 28VDC, with a 5A current rating, it provides efficient power control. This Off-On switch, with SPST configuration, guarantees reliable performance with 25,000 cycles durability. Suitable for panel mounting, it is easy to integrate into control systems. From its brass contact material to its thermoplastic actuator, every detail is engineered for longevity and precision. The P5 Series Push Button Switch is the perfect choice for demanding applications where quality and performance are paramount.
