P5-311224

OTTP5_311224
Heilind Number:OTTP5-311224
Manufacturer:OTTO Controls
Manufacturer Number:P5-311224
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

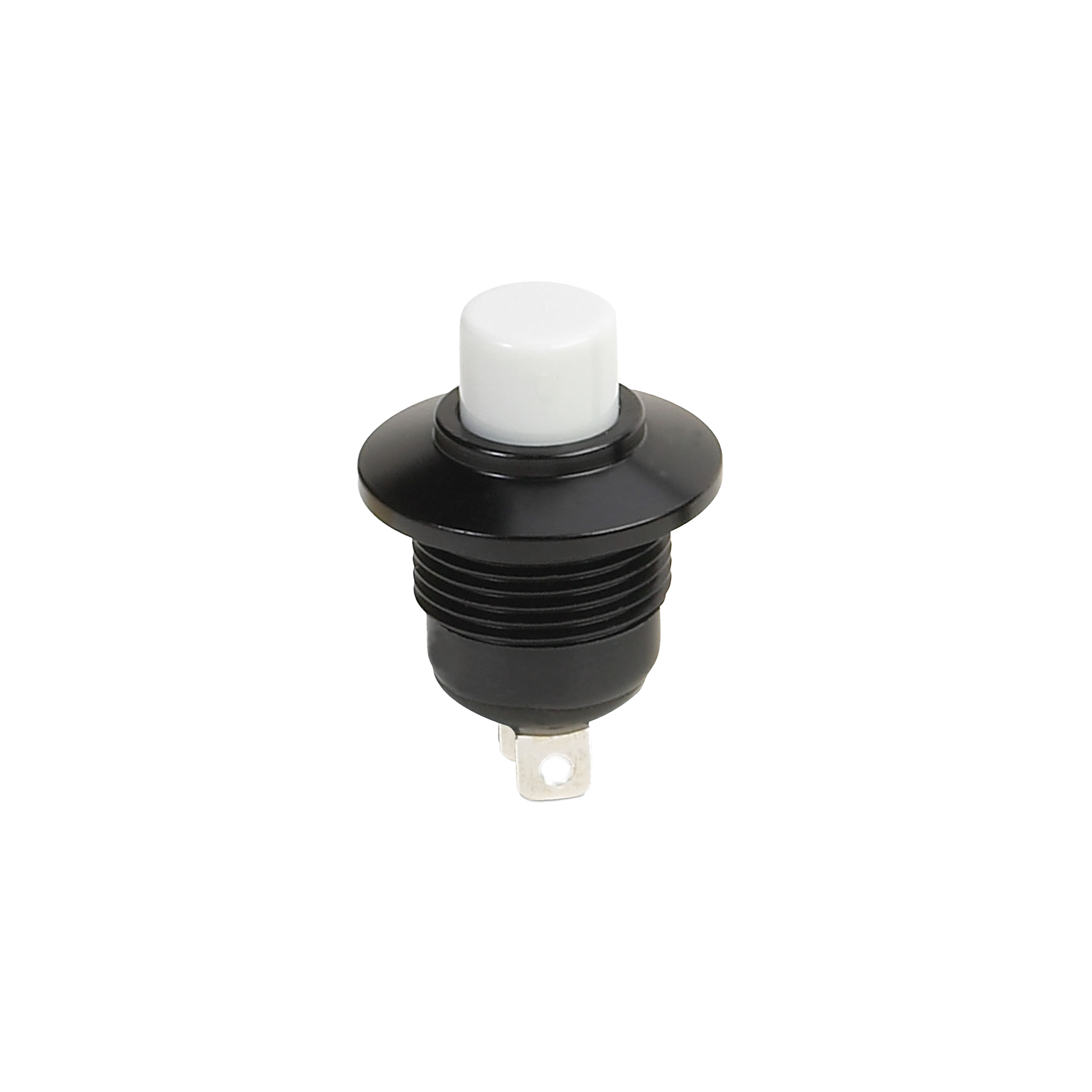

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-311224
Series:P5
Cap Color:Yellow
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.263 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP5-311224

Detailed Description

Introducing the P5-311224, a rugged and reliable pushbutton switch designed for demanding environments. Part of the P5 series, this switch features a durable aluminum housing with a sleek black finish and a high-visibility yellow cap. With an IP rating of 2, it offers protection against dust and water ingress, making it ideal for use in industrial and outdoor applications. The Off-On switch function, along with a 5A current rating and SPST contact configuration, ensures efficient and safe operation. Boasting a Mil Grade designation, this switch guarantees performance and longevity, with a durability rating of 25,000 cycles. Suitable for panel mounting, it is easy to install and solder for secure connectivity. Meeting stringent quality standards, the P5-311224 is a top choice for hi-rel environments where reliability is paramount. Elevate your control systems with this sealed and alternate action pushbutton switch.
