P5-311326

OTTP5_311326
Heilind Number:OTTP5-311326
Manufacturer:OTTO Controls
Manufacturer Number:P5-311326
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

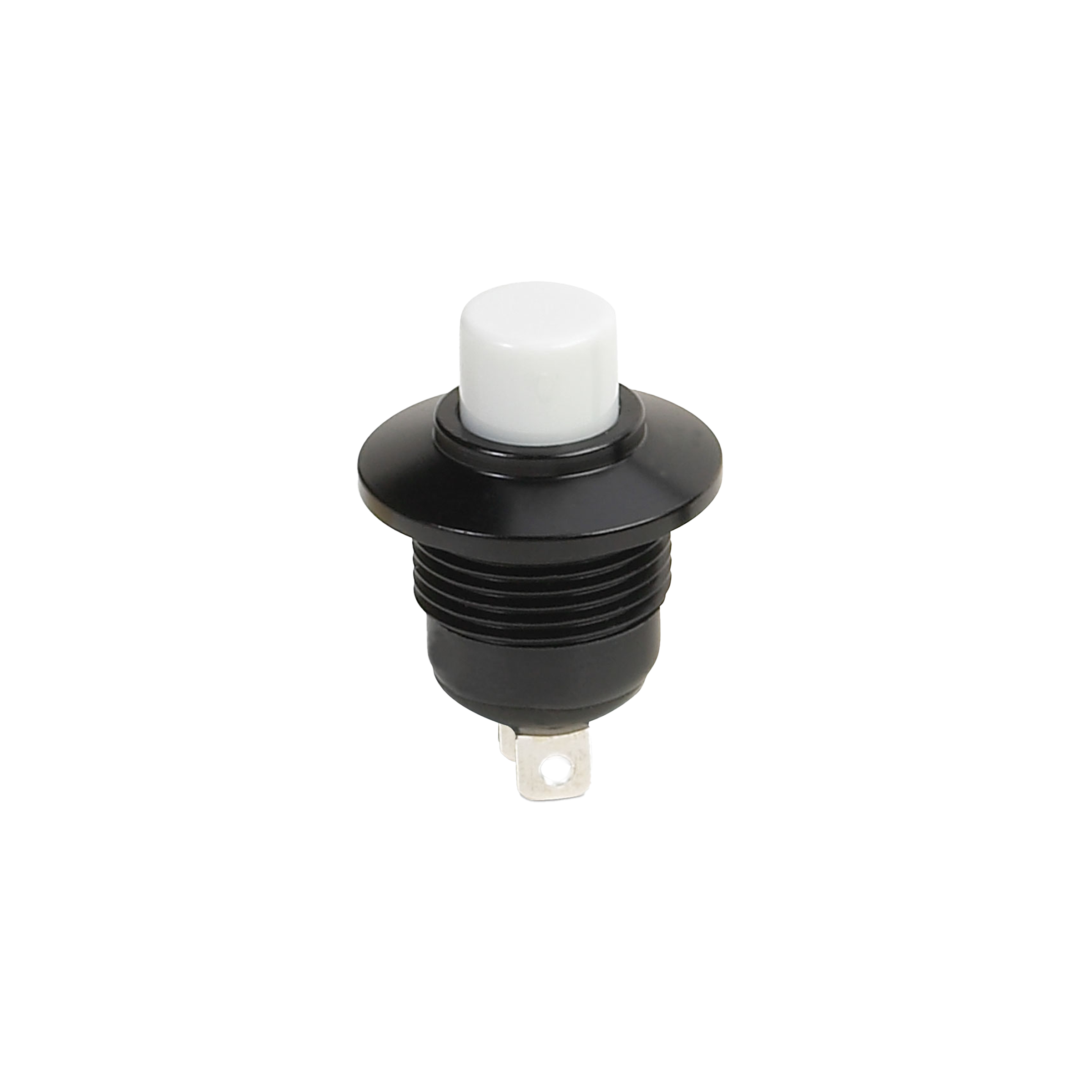

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-311326
Series:P5
Cap Color:Blue
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.263 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP5-311326

Detailed Description

Introducing the P5-311326, a rugged and reliable pushbutton switch designed for demanding environments. Part of the P5 series, this switch features a durable aluminum housing with a sleek black finish and a blue button cap for easy identification. With an IP rating of Symbol 3, it offers protection against dust and water ingress, making it ideal for outdoor and industrial applications. The Off-On switch function, along with a contact configuration of SPST, ensures precise control and connectivity. Operating at temperatures ranging from -40°C to 85°C, and with voltage ratings of 115VAC and 28VDC, this switch is suitable for a wide range of power requirements. Its sealed and mil-grade construction, along with a high durability rating of 25,000 cycles, guarantees long-lasting performance in harsh conditions. Perfect for panel mounting, the P5-311326 is the go-to choice for high-reliability switching needs.
