P5-311334

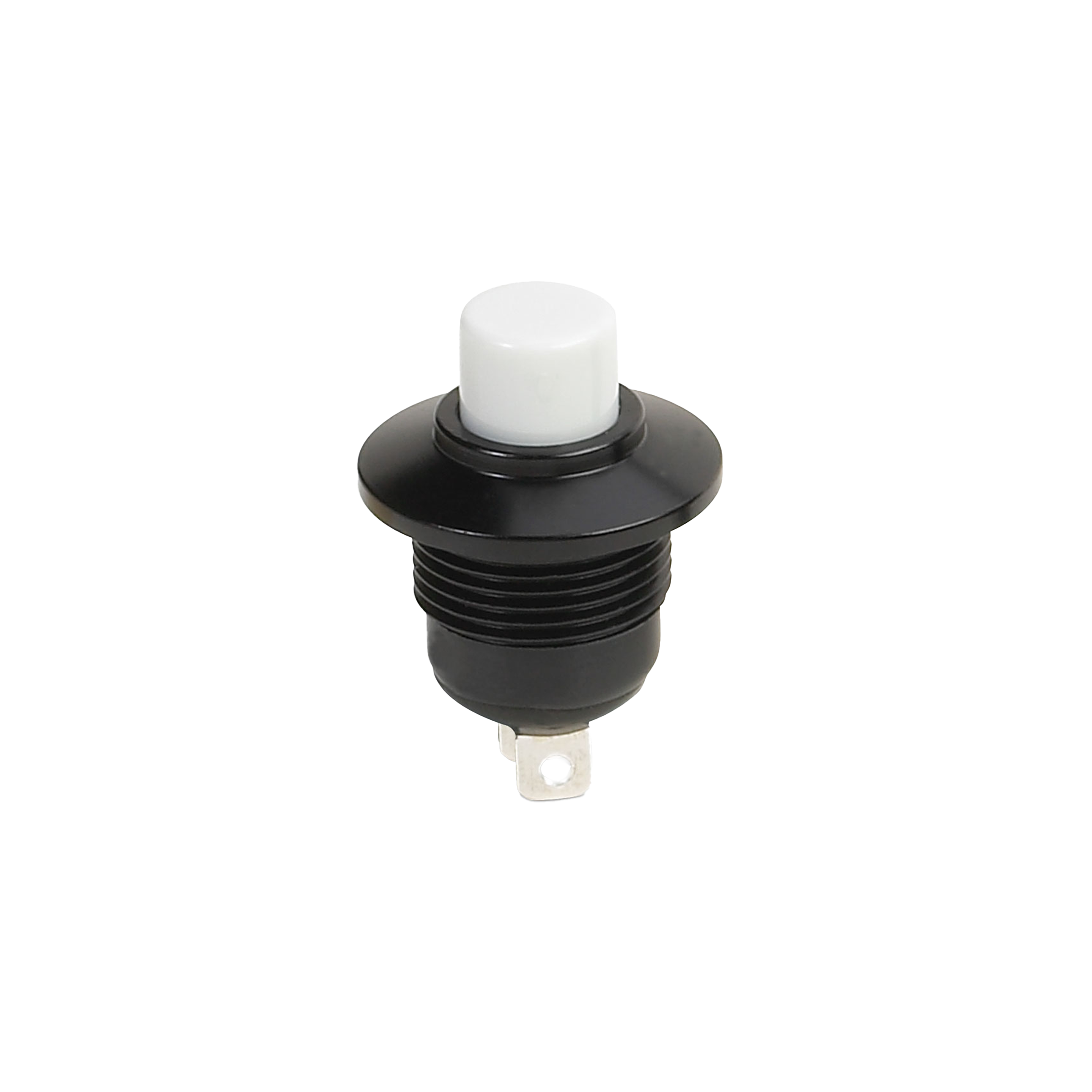

OTTP5_311334
Heilind Number:OTTP5-311334
Manufacturer:OTTO Controls
Manufacturer Number:P5-311334
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-311334
Series:P5
Cap Color:Yellow
IP Rating:Symbol 3
Case Color:Red
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.263 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP5-311334

Detailed Description

Introducing the P5-311334, a high-performance pushbutton switch from our P5 series. Designed for reliability in demanding environments, this switch features a durable yellow flat button actuator and a rugged red aluminum case with an IP3 rating for protection against dust and moisture. The SPST contact configuration with silver-plated brass contacts ensures efficient power transmission, while the 5A current rating and 115VAC/28VDC voltage ratings make it suitable for a wide range of applications. With a sealing construction and a mil-grade designation, this switch guarantees long-lasting performance, rated for up to 25,000 cycles. Ideal for panel mounting with solder termination, it operates smoothly in temperatures ranging from -40°C to 85°C. Upgrade to the P5-311334 for reliable, sealed, and mil-grade switching in aerospace, military, industrial, and other high-reliability settings.
