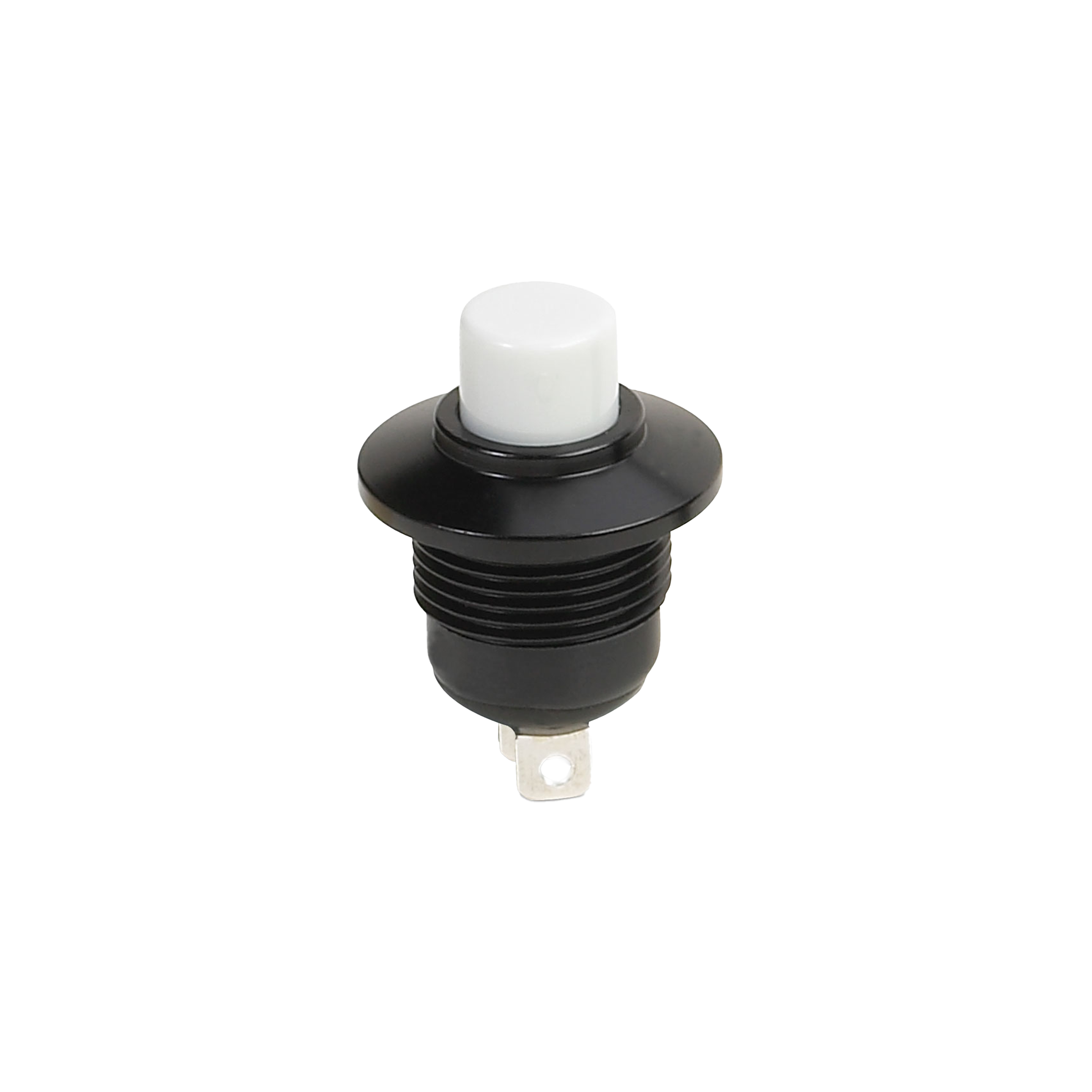

P5-312225

OTTP5_312225
Heilind Number:OTTP5-312225
Manufacturer:OTTO Controls
Manufacturer Number:P5-312225
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-312225
Series:P5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPST
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Green
Actuator Length:.263 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
SKU:OTTP5-312225

Detailed Description

The P5-312225 Pushbutton Switch is a rugged and reliable component designed for high-performance applications in demanding environments. Featuring a durable aluminum housing and a sealed design, this Mil Grade switch offers enhanced protection against moisture, dust, and debris, making it ideal for use in aerospace, defense, and industrial settings. The Off-On switch function, along with a 25,000 cycle durability rating, ensures long-lasting and consistent operation. With a voltage rating of 3-28 VDC and a current rating of 10-100 mA, this SPST switch is suitable for a wide range of low-power electronic systems. The flat button actuator, made of thermoplastic, provides a comfortable and ergonomic interface for users. Panel mount installation and solder termination ensure secure and reliable connectivity. Trust the P5-312225 Pushbutton Switch for your critical control and power applications.
