P5-313229

OTTP5_313229
Heilind Number:OTTP5-313229
Manufacturer:OTTO Controls
Manufacturer Number:P5-313229
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

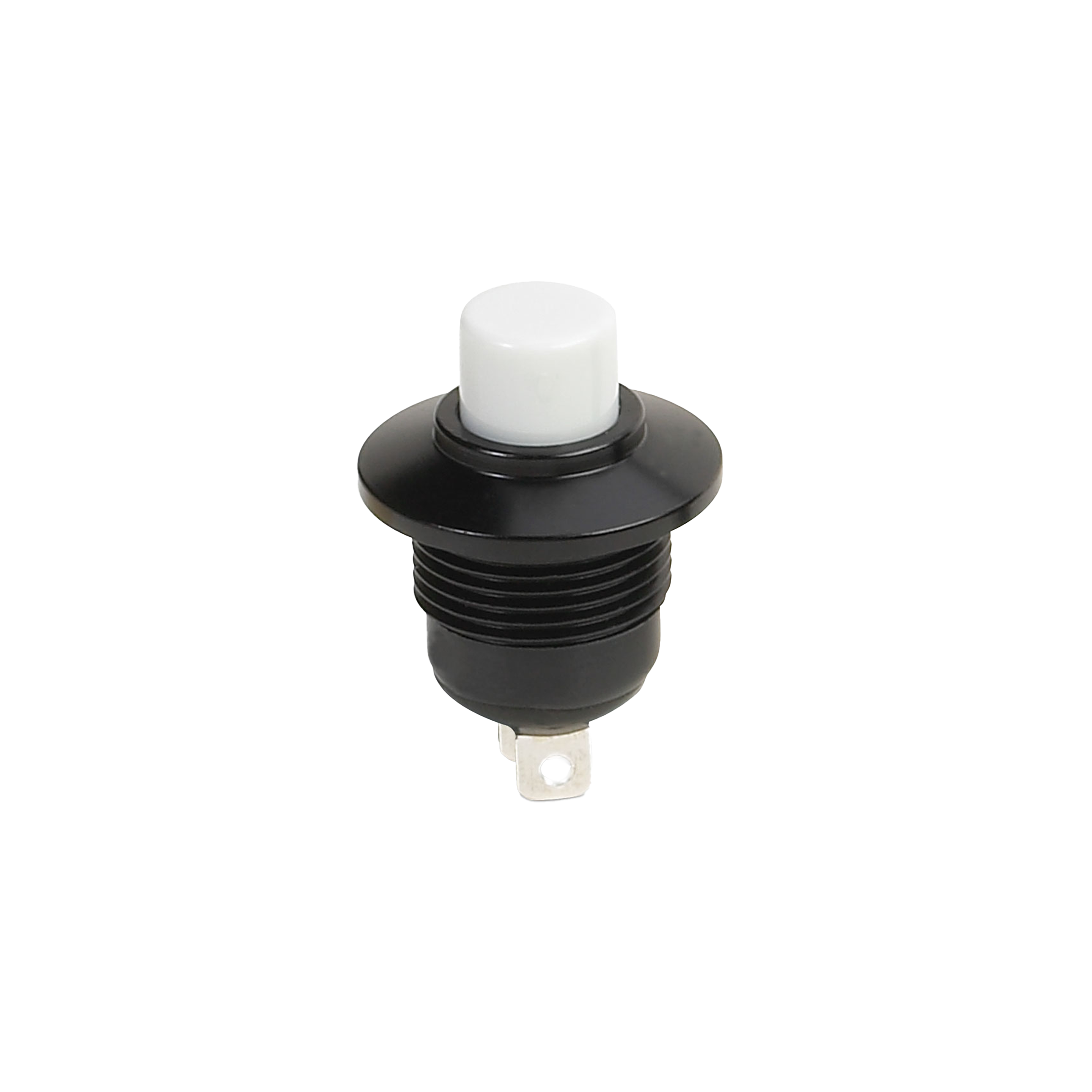

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-313229
Series:P5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White
Actuator Length:.263 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP5-313229

Detailed Description

The P5-313229 Pushbutton Switch is a rugged and reliable component designed for demanding environments. Featuring a durable aluminum housing and sealed construction, it meets stringent MIL-grade standards for performance and longevity. The switch offers a versatile SPDT contact configuration with a 5A current rating, making it suitable for a wide range of applications. With an operating temperature range from -40°C to 85°C, it ensures consistent operation even in extreme conditions. The flat, round actuator provides a comfortable and intuitive interface, while the panel mount installation allows for easy integration into systems. Whether used in aerospace, military, or industrial settings, this switch guarantees exceptional durability with a 25,000-cycle rating. Trust in the P5 series for high-reliability switching solutions.
