P5-314221

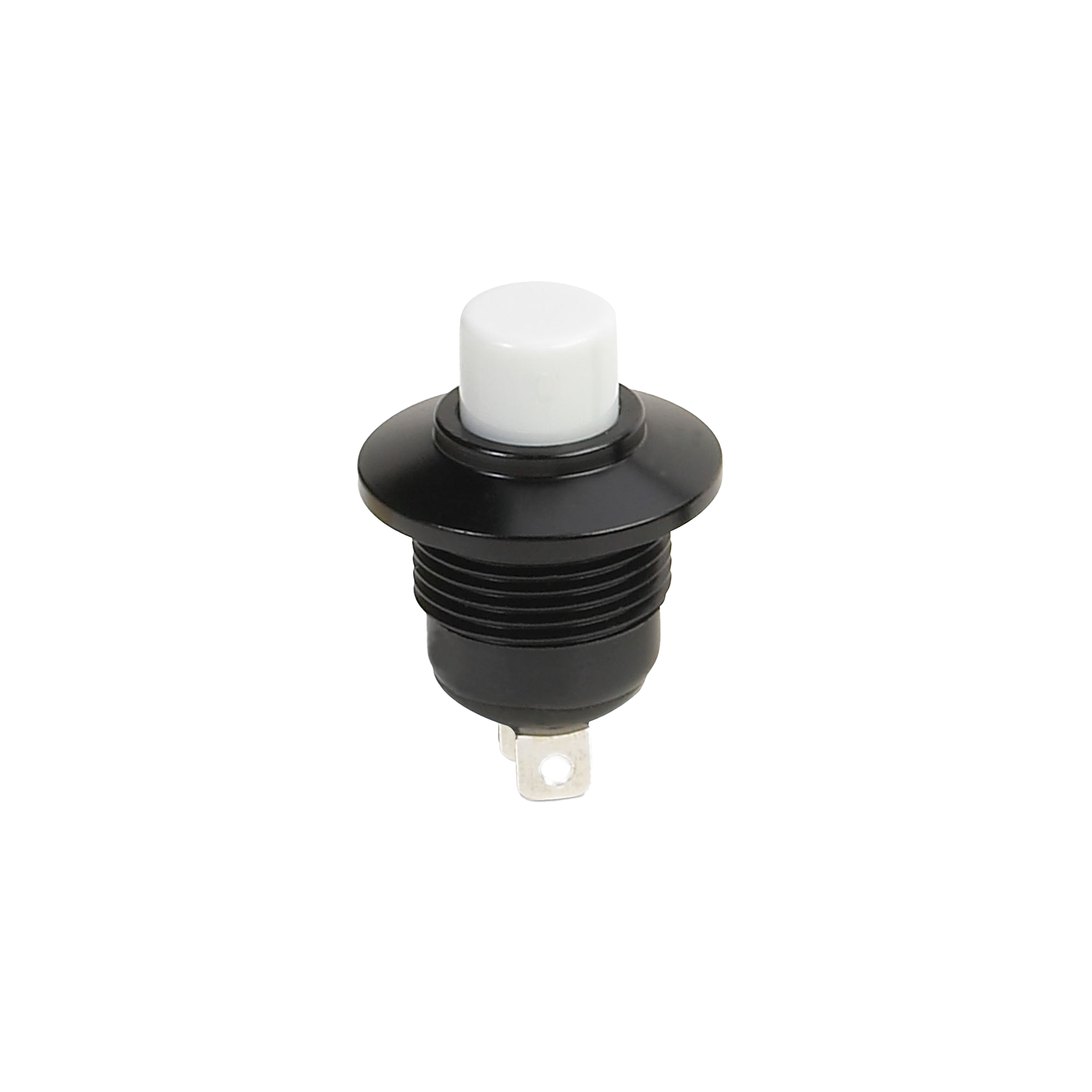

OTTP5_314221
Heilind Number:OTTP5-314221
Manufacturer:OTTO Controls
Manufacturer Number:P5-314221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-314221
Series:P5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.263 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
SKU:OTTP5-314221

Detailed Description

Introducing the P5-314221, a rugged and reliable sealed pushbutton switch designed for high-performance applications. Part of the P5 series, this switch features a durable aluminum housing with a sleek black finish and a vibrant red button for easy visibility. With an IP rating of 2, it offers protection against dust and moisture, making it ideal for harsh environments. The button, made of thermoplastic, provides a comfortable and responsive actuation experience. With a current rating of 10-100 mA and a contact configuration of SPDT, it offers versatility in usage. Gold-plated contacts and brass contact material ensure low contact resistance and high reliability, with a durability rating of 25,000 cycles. Suitable for panel mounting, this switch operates at a wide temperature range from -40°C to 85°C and has a voltage rating of 3-28 VDC. Perfect for aerospace, military, and industrial applications, the P5-314221 guarantees superior performance in demanding conditions.
