P5-411222

OTTP5_411222
Heilind Number:OTTP5-411222
Manufacturer:OTTO Controls
Manufacturer Number:P5-411222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

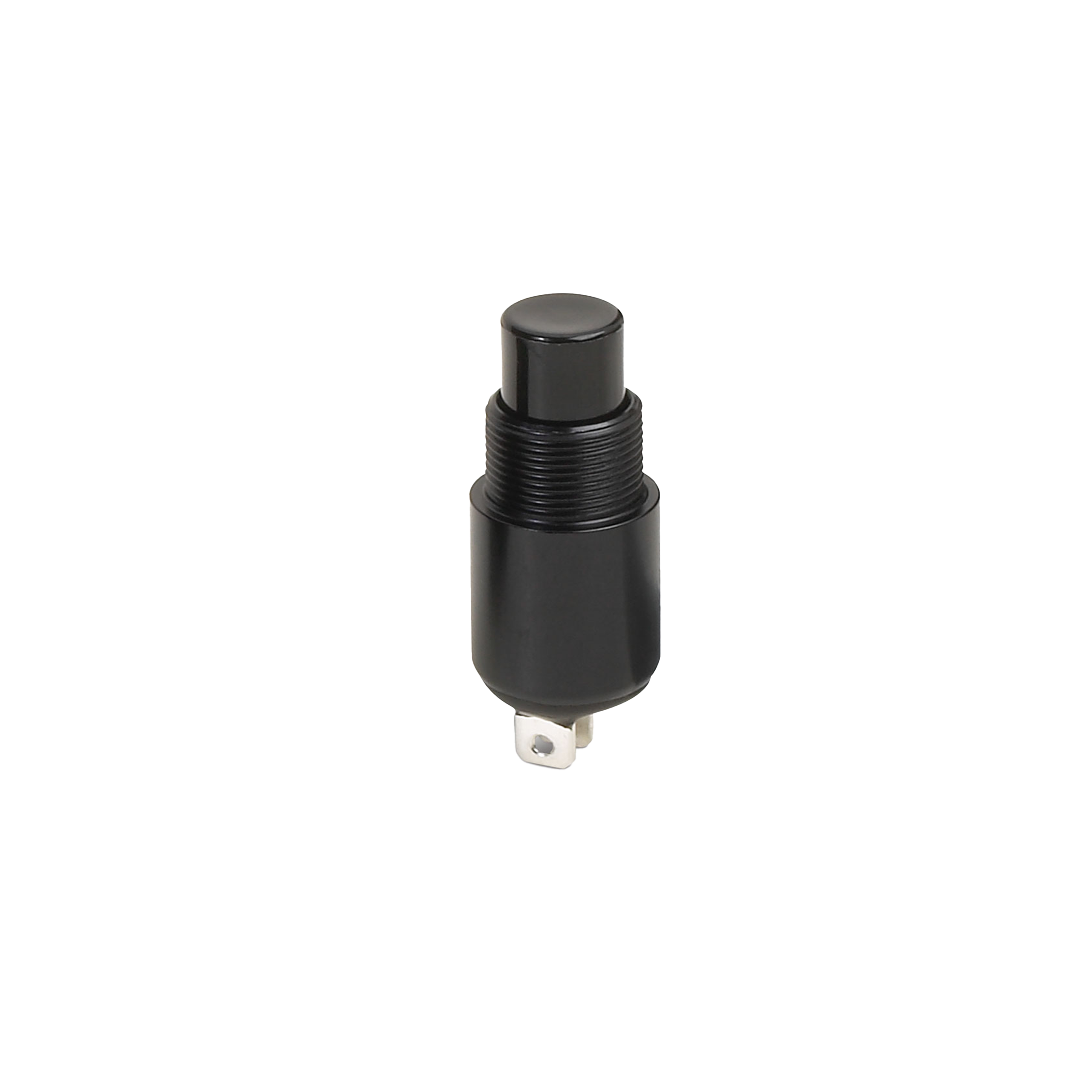

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-411222
Series:P5
Cap Color:Black
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.32 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP5-411222

Detailed Description

Introducing the rugged and reliable P5-411222 Pushbutton Switch from our P5 series. Designed for demanding environments, this switch features a durable aluminum housing in sleek black, with a matching panel-mounting style. The Symbol 2 IP rating ensures protection against dust and moisture ingress. With a current rating of 5A and SPST contact configuration, it guarantees efficient performance. The Off-On switch function, along with a flat round button actuator made of thermoplastic, offers tactile feedback and ease of use. Operating within a wide temperature range from -40°C to 85°C, it is suitable for various applications. The silver-plated brass contacts provide excellent conductivity, while the 25,000-cycle durability rating ensures longevity. Whether in industrial, military, or aerospace settings, this sealed Mil Grade switch is a top choice for reliable control.
