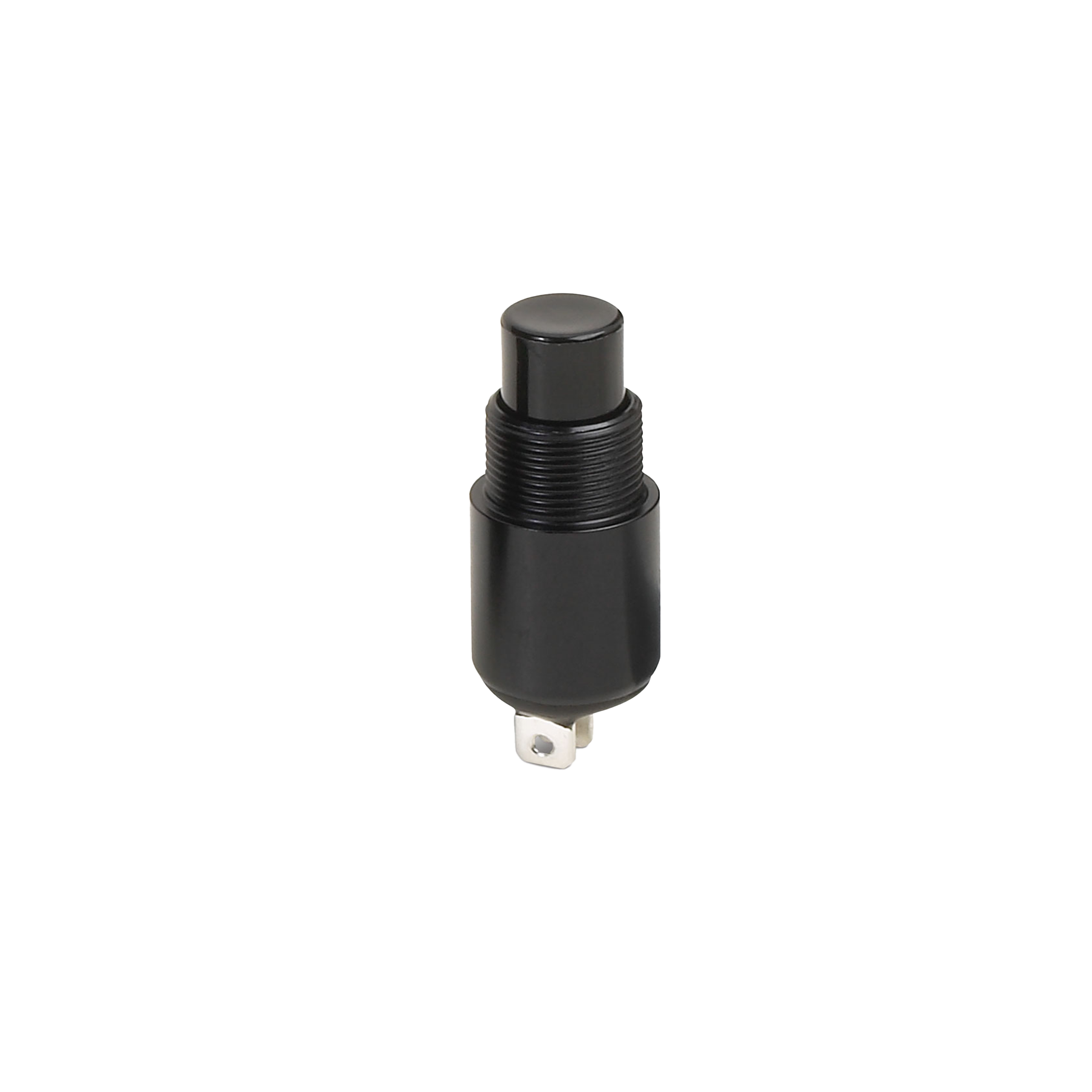

P5-413326

OTTP5_413326
Heilind Number:OTTP5-413326
Manufacturer:OTTO Controls
Manufacturer Number:P5-413326
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-413326
Series:P5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:Symbol 3
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Blue
Actuator Length:.32 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP5-413326

Detailed Description

Sealed to MIL standards for reliable operation in harsh environments, the P5 Series Pushbutton Switch ( P5-413326) is a rugged and durable component. Featuring a flat blue button actuator and a round shape, this switch is designed for panel mount installation. With a current rating of 5A and a contact plating of silver, it ensures efficient conductivity. The SPDT contact configuration allows for versatile switching options, while the on-on switch function offers flexibility in use. Crafted from high-quality aluminum and thermoplastic, this switch guarantees longevity, with a durability rating of 25,000 cycles. Operating between -40°C to 85°C, it is suitable for a wide range of applications. Whether in industrial machinery or aerospace systems, the P5 Series Pushbutton Switch delivers dependable performance.
