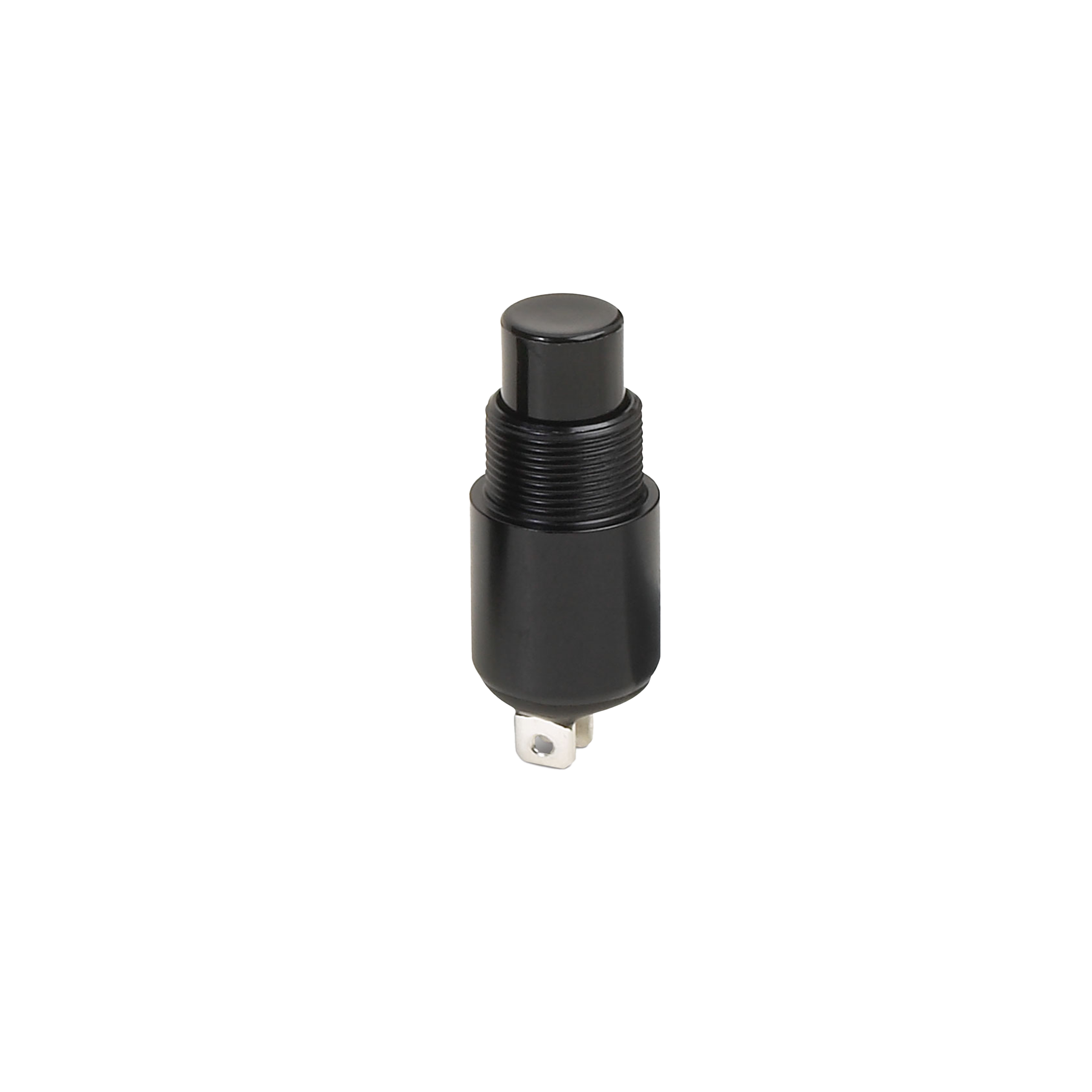

P5-415319

OTTP5_415319
Heilind Number:OTTP5-415319
Manufacturer:OTTO Controls
Manufacturer Number:P5-415319
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-415319
Series:P5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:Symbol 3
Illumination:Not Illuminated
Contact Configuration:SPST
Actuator Type:Button (Flat)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White
Actuator Length:.32 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP5-415319

Detailed Description

Introducing the P5-415319, a rugged and reliable pushbutton switch designed for demanding environments. Featuring a durable aluminum housing and sealed construction, this Mil Grade switch offers enhanced protection against dust, moisture, and other contaminants. With a high durability rating of 25,000 cycles, it ensures long-lasting performance even in harsh conditions. The Off-On switch function and SPST contact configuration provide simple and efficient operation. Rated for 115 VAC and 28 VDC, with a current rating of 5A, it is suitable for a wide range of applications. The white button with a round, flat actuator design offers ease of use, while the silver cap and case add a sleek touch. Ideal for panel mounting, this pushbutton switch is perfect for aerospace, military, industrial, and other hi-rel applications where reliability is paramount. Upgrade to the P5-415319 for superior performance and peace of mind.
