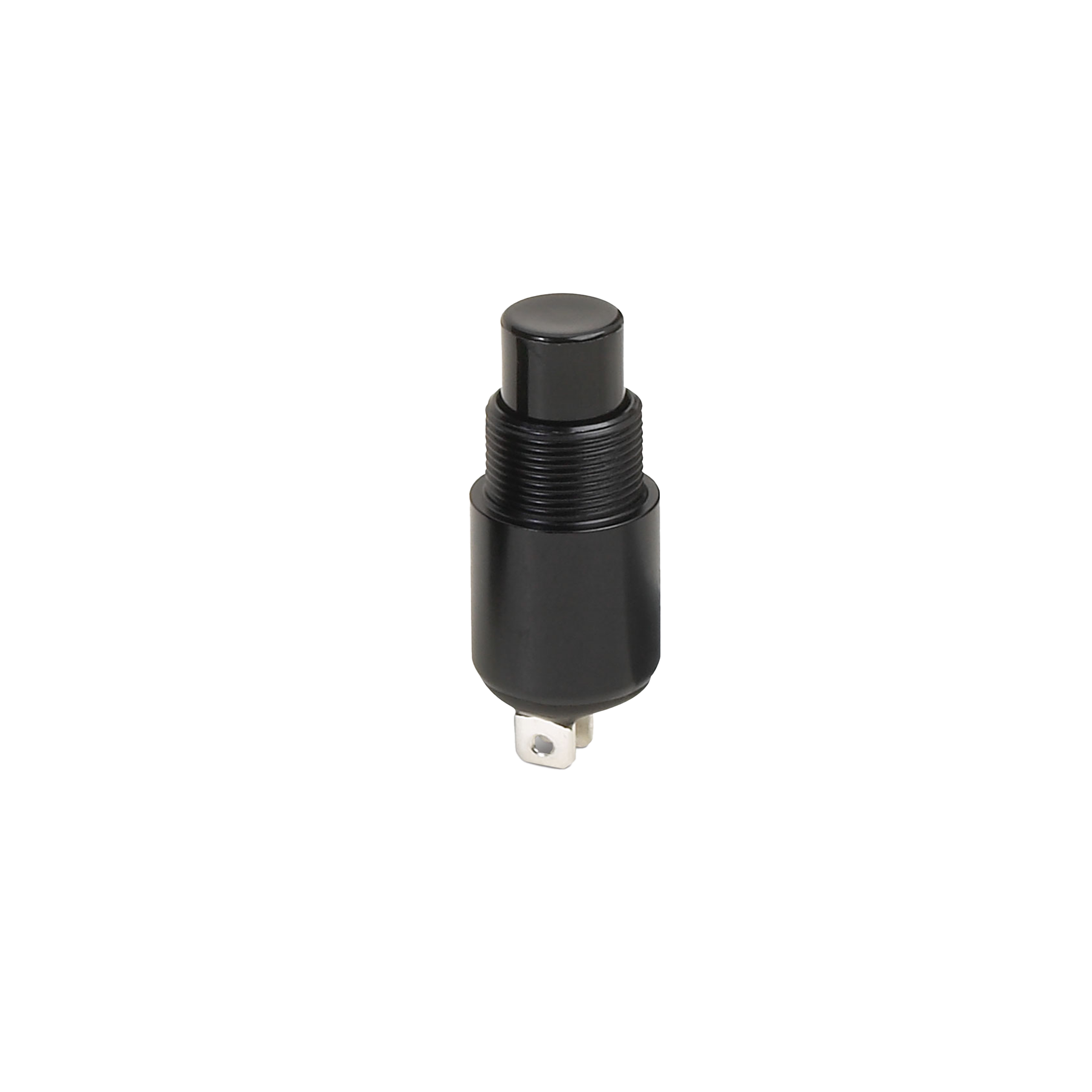

P5-416328

OTTP5_416328
Heilind Number:OTTP5-416328
Manufacturer:OTTO Controls
Manufacturer Number:P5-416328
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-416328
Series:P5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:Symbol 3
Illumination:Not Illuminated
Contact Configuration:SPST
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Gray
Actuator Length:.32 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
SKU:OTTP5-416328

Detailed Description

Introducing the P5 Series Sealed Mil Grade Alternate Action Pushbutton Switch, SKU P5-416328. Designed for reliability in demanding environments, this switch features a durable aluminum housing with a black finish and a thermoplastic actuator in a sleek round shape. The flat button actuator ensures easy operation, while the gold-plated brass contacts guarantee robust performance. With an IP rating of 3 and a sealed design, it offers protection against moisture and dust ingress, making it ideal for use in aerospace, defense, and industrial applications. The SPST contact configuration and Off-On switch function provide simple yet effective control, with a current rating of 10-100 mA and a voltage rating of 3-28 VDC. Operating temperature ranges from -40°C to 85°C, and with a durability rating of 25,000 cycles, this switch is built to last. Panel mount installation and solder termination ensure secure and reliable connections. Trust in the P5 Series for high-quality, high-reliability performance in critical systems.
