P5-618122

OTTP5_618122
Heilind Number:OTTP5-618122
Manufacturer:OTTO Controls
Manufacturer Number:P5-618122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

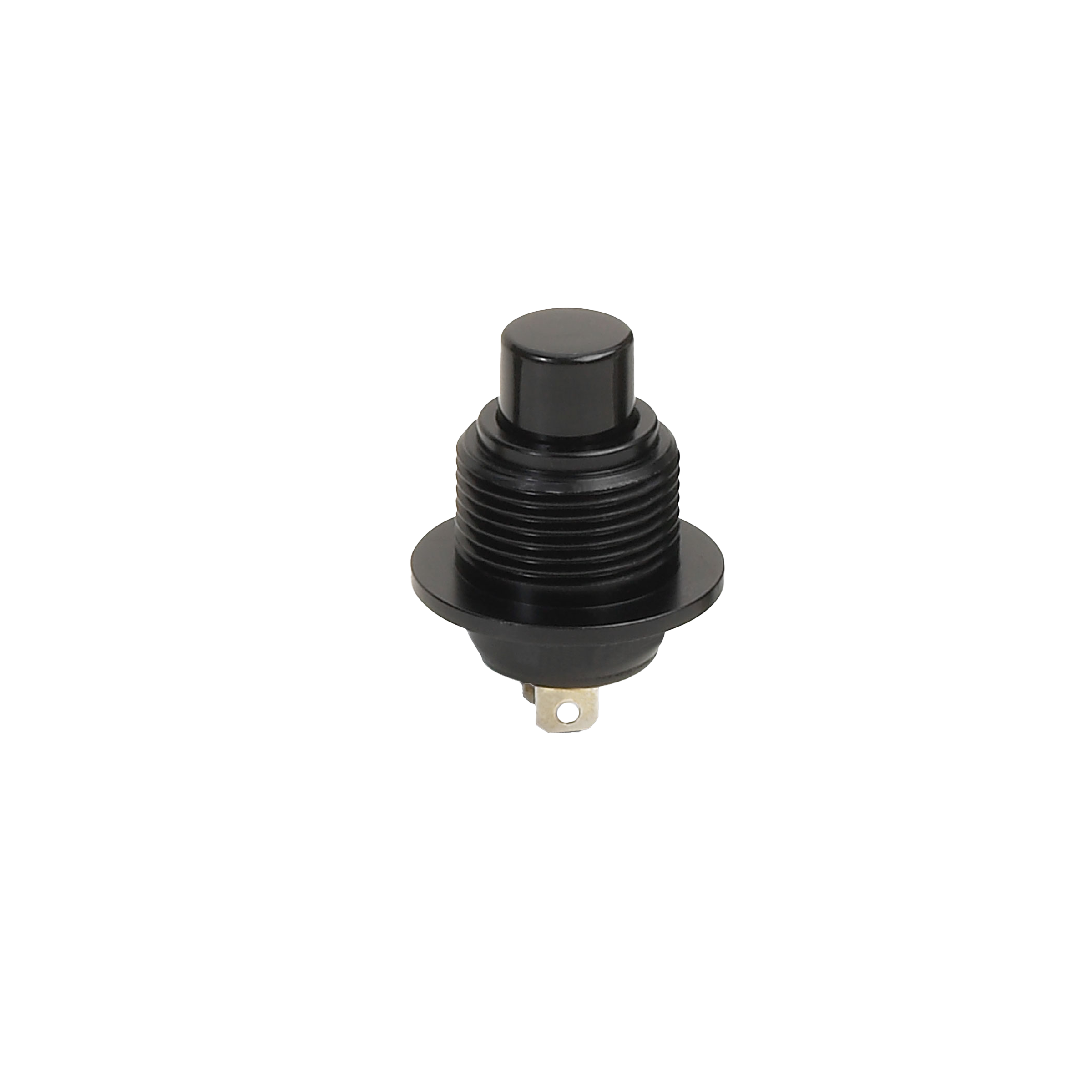

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-618122
Series:P5
Cap Color:Black
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 - 100 mA
Mounting Style:Panel Mount
Actuator Length:.263 in
Contact Plating:Gold
Switch Function:On-On
Contact Material:Brass
Housing Material:Aluminum
Type:Unsealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (DC):3 - 28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP5-618122

Detailed Description

The P5-618122 Pushbutton Switch is a rugged and reliable component designed for demanding applications. Featuring a black aluminum housing and gold-plated brass contacts, this switch offers superior durability and performance. With a current rating of 10 to 100 mA and a voltage rating of 3 to 28 VDC, it is suitable for a wide range of electrical systems. The SPDT contact configuration and On-On switch function provide versatility in usage. Panel mount installation and solder termination ensure secure and stable connectivity. Operating smoothly in temperatures ranging from -40°C to 85°C, this switch is ideal for both indoor and outdoor use. Its sealed, Mil Grade construction guarantees protection against environmental factors, making it a dependable choice for aerospace, military, and industrial applications. Trust in the P5-618122 for high-quality, long-lasting performance.
